Synergy 21 LED Flex Strip 60 red DC24V 24W IP20
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 133000
- Fabricantes: Synergy 21 LED
- Número de artículo del fabricante: S21-LED-F00098
- Código EAN: 4038816133007
- Peso: 0.09kg
- Garantía: 60 Meses
- ¿Preguntas sobre este artículo?
Downloads
Ficha ténica DE
Ficha técnica EN
EU RoHS und REACH Erklärung

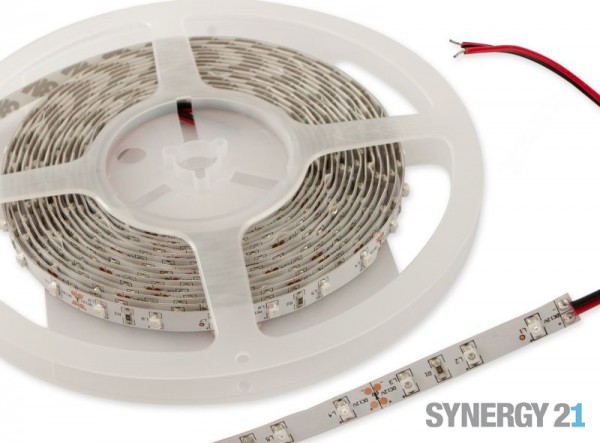

Synergy 21 LED Flex Strip red DC24V 24W IP20
SMD2835
Voltage: 24V, max.1A
Watt: 24W±10%
Light colour: red
Beam angle: 120°
Protection class: IP20
Number of LEDs: 300*3528SMD
Dimensions: 5000*8*3 mm
PCB colour: white, open cable end
Operating temperature: -25°C to +40°C
Weight: 0.090 kg
Can be shortened every 6 LEDs
Adhesive tape: yes 3M on the back
kWh/1000h: 24
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips
Produktmerkmale:
| Altura Tira LED: | 3 |
| Amperio: | 1 |
| Ancho Tira LED: | 8 |
| CC oder CV: | CV |
| Cinta adhesiva: | Sí |
| Clase de protección: | IP20 |
| Color de luz: | Rojo |
| Largo Tira LED: | 5000 |
| Regulable: | depende de la fuente de alimentación |
| Tira LED cortable: | 100 |
| Vatio: | 24 |
| Voltio: | 24 |
| Ángulo de enfoque: | 120 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 24,00 |
| Lumen: | 2025 |
| Watt: | 24,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
