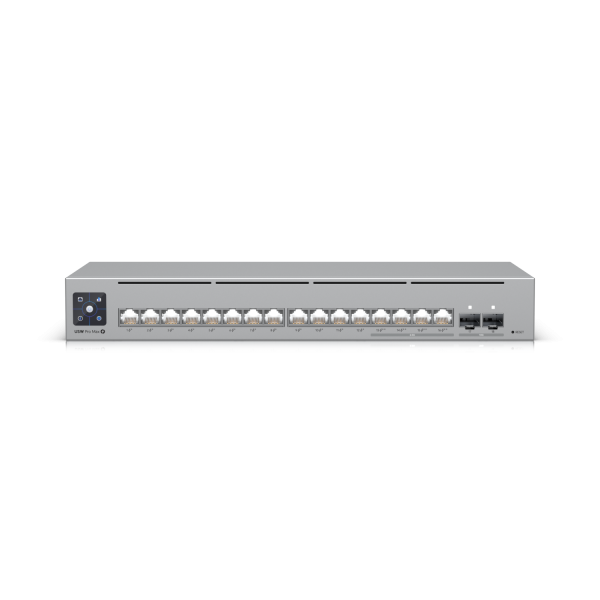

Ubiquiti Switch full managed Layer3 18 Port Â• 4x 2,5 GbE Â• 12x GbE Â• PoE Budget 180W Â• 4x PoE bt Â• 12x PoE at Â• 2x SFP+ Â• UniFi Â• USW-Pro-Max-16-PoE

Vista preliminar: Ubiquiti Switch full managed Layer3 18 Port Â• 4x 2,5 GbE Â• 12x GbE Â• PoE Budget 180W Â• 4x PoE bt Â• 12x PoE at Â• 2x SFP+ Â• UniFi Â• USW-Pro-Max-16-PoE

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Proablemente disponible nuevamente a partir 23 de mayo de 2025

Llámenos Escríbanos

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 231139
Fabricantes: Ubiquiti
Número de artículo del fabricante: USW-Pro-Max-16-PoE
Código EAN: 8100846945724
Peso: 3.61kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting...más

Cerrar menú

Información del producto "Ubiquiti Switch full managed Layer3 18 Port Â• 4x 2,5 GbE Â• 12x GbE Â• PoE Budget 180W Â• 4x PoE bt Â• 12x PoE at Â• 2x SFP+ Â• UniFi Â• USW-Pro-Max-16-PoE"

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(4) 2.5 GbE PoE++ ports

(12) GbE PoE+ ports

(2) 10G SFP+ ports

180W total PoE availability

Versatile desktop, wall, and rack** mounting

Silent, fanless cooling system

_{*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

**Requires add-on Rack Mount accessory.}

Technical Specifications

Mechanical
Dimensions	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight	2.1 kg (4.6 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports
PoE interface	(12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	42 Gbps
Switching capacity	84 Gbps
Forwarding rate	62.496 Mpps
Power method	DC adapter
Power supply	54V, 210W
Max. power consumption	30W (Excluding PoE output)
Total available PoE	180W
Max. PoE wattage per port by PSE	PoE: 15.4W PoE+: 30W PoE++: 60W
Voltage range PoE mode	PoE: 44—57V PoE+/PoE++: 50—57V
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Etherlighting™
Ethernet	Locating Speed/link Native VLAN/network
SFP+	Locating Speed/link Native VLAN/network
Application Requirements
UniFi Network	Version 8.1.127 and later
