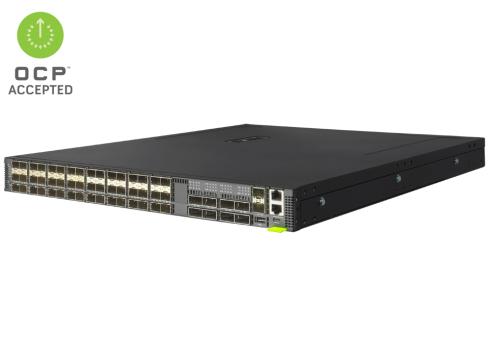

EdgeCore Switch full manged 56 Port • 48 x 25G SFP28 • 8x 100G QSFP28 • 19" 1 HE • Datacenter Switch • Back-to-front • DCS203 • 7326-56X-O-AC-B

EdgeCore DCS203 • AS7326-56X, 48 x 25G SFP28 and 8 x 100G QSFP28 ports, Broadcom Trident3.X7 ASIC, Quad-core Intel Xeon® D1518 CPU, dual hot-swappable 650W AC PSUs and 5+1 Fan Modules with Front-to-Rear airflow, rack mount kit (Front and back), 3 years Hardware Warranty

Features

• Deploy as TOR switch supporting 10 or 25 GbE to servers, with 40 GbE, or 100 GbE uplinks.
• 48 x SFP28 + 8 x QSFP28 switch ports, each QSFP28 supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout cables, 4 x 25 GbE, or 4 x 10 GbE..
• Layer 2 or Layer 3 forwarding of 2 Tbps
• Supports hot/cold aisles with front-to-back or back-to-front airflow SKUs.
• All ports on front; PSUs and fans accessible from rear
• Hot-swappable, load-sharing, redundant AC or -48V DC PSUs
• 5+1 redundant, hot-swappable fan modules
• Energy ef?cient
• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.

Compatible Software Option

• Arrcus – ArcOS

• CapGemini – SDvAS

• CGS – COS

• IP Infusion – OcNOS

• Open Compute Project – Open Network Linux

• Pica8 – PicOS

• Pluribus Netvisor ONE

• SONiC
