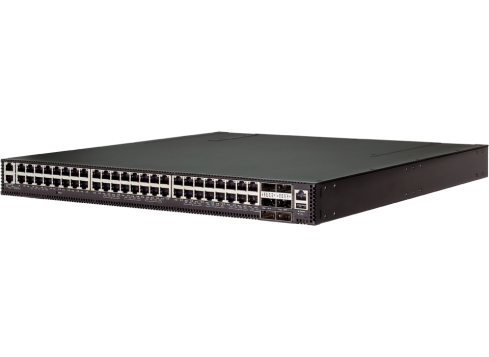

EdgeCore Switch full manged 54 Port • 48 x 10Gbe • 6x 100G QSFP28 • 19" 1 HE • Datacenter Switch • Front-to-back • DCS202 • 5835-54T-O-AC-F

EdgeCore DCS202 • AS5835-54T, 48 x 10GBASE-T and 6 x 100G QSFP28 ports, Broadcom Trident3.X5 ASIC, Quad-core Intel Atom C3558 CPU, dual hot-swappable 600W AC PSUs and 4+1 Fan Modules with Front-to-Rear airflow, 2 front rack mounting ears, 3 years Hardware Warranty

Features

• 48 x 10G RJ-45 IEEE 802.3an switch ports.
• 6 x 100 QSFP28 switch ports, each supporting 100GbE (DAC, 100GBASE SR4/LR4) or 4 x 25GbE (DAC or fiber breakout cable).
• VXLAN and NVGRE tunneling support in hardware for network virtualization.
• Rack mountable in standard 19? racks
• Supports hot/cold aisles with front-to-back or back-to-front airflow SKUs.
• All ports on front; PSUs, fan modules on rear
• Hot-swappable, load sharing, redundant AC or -48 VDC PSUs
• Hot swappable 4+1 redundant fan modules
• Management: Ethernet and console RJ-45 ports; USB storage port
• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings

Compatible Software Option

• CapGemini – SDvAS

• Open Compute Project – Open Network Linux

• Pica8 – PicOS

• Pluribus Netvisor ONE

• SONiC
