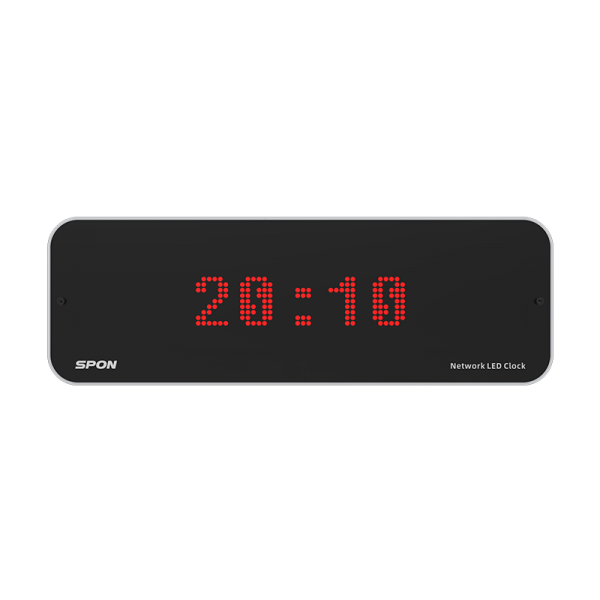

SPON Network IP-Clock with I/O-Ports and optional SIP Two-Way Communication

Vista preliminar: SPON Network IP-Clock with I/O-Ports and optional SIP Two-Way Communication

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

Downloads

Ficha ténica DE

Manual

Instrucciones de instalación DE

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 239964
Fabricantes: SPON
Número de artículo del fabricante: GEN-3102A03
Peso: 2.5kg
Garantía: 24 Meses
¿Preguntas sobre este artículo?

Highlights: High Power Output Precise Time Display Simplified Wiring, POE Power...más

Cerrar menú

Información del producto "SPON Network IP-Clock with I/O-Ports and optional SIP Two-Way Communication"

Highlights:

High Power Output
Precise Time Display
Simplified Wiring, POE Power Supply
Versatile I/O Interfaces
Scalable & Easy to Integrate
Two-way communication

Network LED Clock | PoE IP Network Synchronized LED Digital Clock

The Network LED Clock is an audio terminal with a built-in LED clock display, ensuring precise NTP time synchronization. It features a built-in 2×30W amplifier to drive 8O speakers and an integrated microphone for two-way intercom, enhancing communication in classrooms and monitoring rooms. It also upgrades any passive speaker into a network-enabled device, bringing the full benefits of SIPLINK network audio—regardless of the brand or design.

Technical Details:

Technical Parameter	Specification
Power source	DC24V, PoE (IEEE 802.3af/at)
Power consumption	= 3W
Network protocol	TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio codec	Opus, PCMU (G.711u), PCMA (G.711a), G.722
Frequency response	100 ~ 20 kHz
Rated output	2 × 30W (DC 24V), 2 × 7W (PoE / PoE+)
Network interface	100BASE-TX, RJ45 Connector
Audio input	1 × Line/Mic input (balanced, switchable)
Control input	2 × inputs
Control output	1 × output
Operating temperature	-10 °C ~ +50 °C
Housing material	Sheet Metal, ABS
Dimensions	366 × 123 × 55 mm
Weight	1600 g
