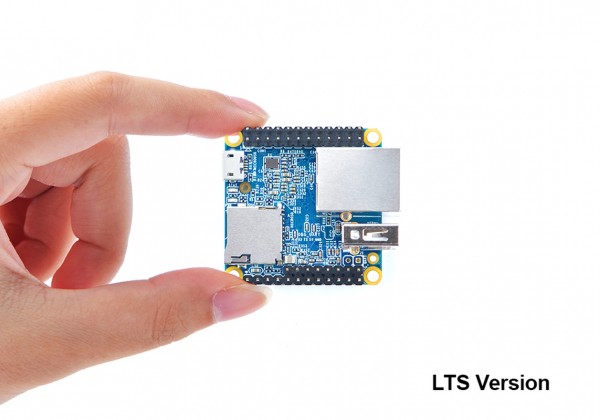

FriendlyELEC NanoPi Neo LTS - 512MB QuadCore Allwinner H3 Qu

FriendlyELEC NanoPi Neo with 512MB
Please order a suitable heat sink for the processor (Art. 134871) separately.

- SoC: Allwinner H3 Quad Core Cortex A7 1,2Ghz
- DDR3 RAM: options: 512M RAM
- MicroSD Slot x1
- Connectivity: lO/lOOM Ethernet port
- USB Host: 1x 2.0 Host Typ A
- Micro USB: 1 x Micro USB,OTG, for data transmission and power input
- Debug Serial Port: 4Pin 2.54mm pitch pin header
- GPIO: 2.54mm pitch 40pin, compatible with Raspberry Pi's GPIO. It includes UART,
  SPI, |2C, PWM, IO etc
- User Key: 1 x Power, 1 x Reset
- LED: 1 x Power LED, 1 x System LED
- Power: DC 5V/2A
- PCB Dimension(mm): 40x40mm
- OS/Software: u-boot, Ubuntu-Core
