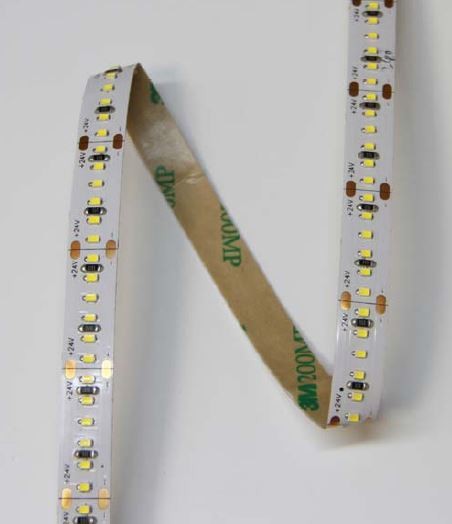

Synergy 21 LED Flex Strip 180 NW DC24V 64W IP68 CRI>90 2216
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 154718
- Fabricantes: Synergy 21 LED
- Número de artículo del fabricante: S21-LED-C00053
- Código EAN: 4038816154712
- Peso: 0.36kg
- Garantía: 60 Meses
- ¿Preguntas sobre este artículo?
Downloads
Ficha ténica DE
Ficha técnica EN
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip 2216 Series
2216=LED chip size 2.2mm x 1.6mm
Length: 5m
Voltage: 24V,
Watt: 12,4W/m, 63,5W±10%
Light colour: neutral white, 4000K, CRI>95-97
Brightness: 1020lm/m ±10%, total: 5100lm
Beam angle: 120°
Protection class: IP68(Super slim)
Number of LEDs: 180*2216SMD/m, total: 900LEDs
Dimensions: 5000*10*3 mm
PCB colour: white, open cable end red black (150±5mm)
Operating temperature: -25°C to +40°C
Weight: 0.500kg
Can be shortened every 6 LEDs 3.5cm
Adhesive tape: yes 3M on the back
Energy efficiency class: A
kWh/1000h: 70
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
Produktmerkmale:
| Altura Tira LED: | 3 |
| Amperio: | 2.60 |
| Ancho Tira LED: | 10 |
| CC oder CV: | CV |
| CRI: | >90 |
| Cinta adhesiva: | Sí |
| Clase de protección: | IP68 |
| Color de luz: | Blanco Neutro |
| Color de luz en Kelvin: | 4000 |
| Largo Tira LED: | 5000 |
| Lúmenes: | 5100 |
| Regulable: | depende de la fuente de alimentación |
| Tira LED cortable: | 35 |
| Vatio: | 64 |
| Voltio: | 24 |
| Ángulo de enfoque: | 120 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 70,00 |
| Lumen: | 5100 |
| Watt: | 63,5 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
