Synergy 21 LED-Flex-Streifen 70 WW DC24V 240W IP65 ULS 50m
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 158924
- Fabricantes: Synergy 21 LED
- Número de artículo del fabricante: S21-LED-F001832
- Código EAN: 4038816081018
- Peso: 0.5kg
- Garantía: 60 Meses
- ¿Preguntas sobre este artículo?
Downloads
Ficha ténica DE
Ficha técnica EN
EU RoHS und REACH Erklärung

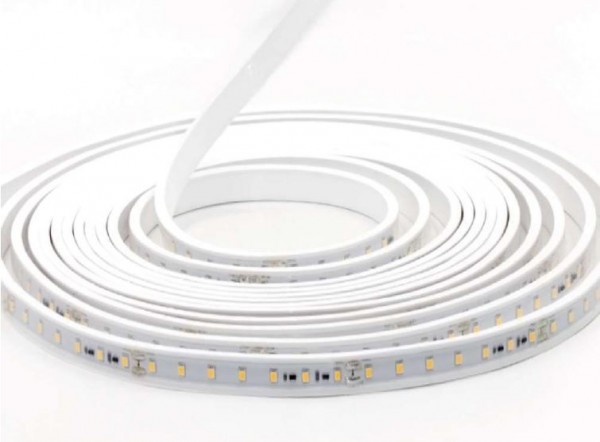

Synergy 21 LED Flex Strip ULS Series
ULS=Ultra Long Strip
Voltage: 24V,
Watt: 240W
CRI>80
Light colour: warm white, 2400K
Brightness: 3900lm
Beam angle: 120°
Protection class: IP65
Number of LEDs: 70/m
Dimensions: 50000*10*3 mm
PCB colour: white, open cable end (360±5mm)
Operating temperature: -25°C to +40°C
Weight: 0.500kg
Can be shortened every 7 LED 10cm
Adhesive tape: yes 3M on the back
Energy efficiency class: A
kWh/1000h: 52.8
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips
Produktmerkmale:
| Altura Tira LED: | 3 |
| Amperio: | 10 |
| Ancho Tira LED: | 10 |
| CC oder CV: | CV |
| CRI: | >80 |
| Cinta adhesiva: | Sí |
| Clase de protección: | IP65 |
| Color de luz: | Blanco Cálido |
| Color de luz en Kelvin: | 2400 |
| LED - Color de la carcasa: | Blanco |
| Largo Tira LED: | 50000 |
| Lúmenes: | 3900 |
| Medidas: | 50000*10*3 |
| Regulable: | depende de la fuente de alimentación |
| Tira LED cortable: | 100 |
| Vatio: | 240 |
| Voltio: | 24 |
| Ángulo de enfoque: | 120 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 52,80 |
| Lumen: | 3900 |
| Watt: | 48,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
