Synergy 21 LED flex strip COB NW DC24V 50W CRI>90
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
-
Abverkaufsartikel
- Stock: 0
- Nº de artículo 178632
- Fabricantes: Synergy 21 LED
- Número de artículo del fabricante: S21-LED-C00104
- Código EAN: 4038816178633
- Peso: 0.6kg
- Garantía: 24 Meses
- ¿Preguntas sobre este artículo?
Downloads
Ficha ténica DE
Ficha técnica EN
EU RoHS und REACH Erklärung
Zu diesem Produkt existiert ein Alternativartikel!

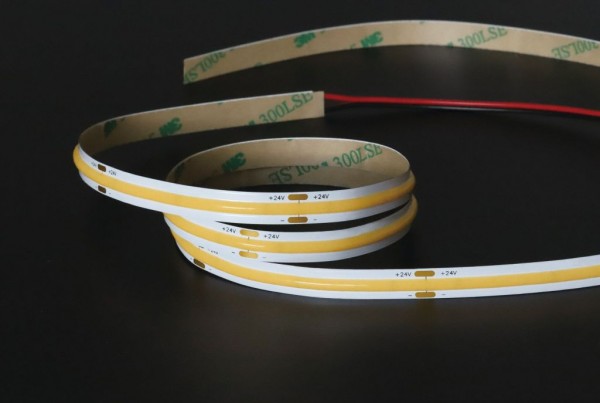

Synergy 21 LED Flex Strip with COB chip
Length: 5m
Voltage: 24V, (12V available on request)
Watt: 11W/m, 55W
Light colour: neutral white, 4000K, CRI>90 (R9>60)
Brightness: 1045m/m Total: 5225lm
Beam angle: 120°
Protection class: IP20
Number of LEDs: 512/m, total: 2560LEDs
Dimensions: 5000*8*2mm
PCB colour: white,
Operating temperature: -25°C to +40°C
Can be shortened every 62.5mm
Adhesive tape: yes 3M on the back
Energy efficiency class: A+
kWh/1000h: 60.5
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
Produktmerkmale:
| Altura Tira LED: | 2 |
| Amperio: | 2 |
| Ancho Tira LED: | 8 |
| CC oder CV: | CV |
| CRI: | >90 |
| Cinta adhesiva: | Sí |
| Clase de protección: | IP20 |
| Color de luz: | Blanco Neutro |
| Color de luz en Kelvin: | 4000 |
| Largo Tira LED: | 5000 |
| Lúmenes: | 5225 |
| Regulable: | depende de la fuente de alimentación |
| Tira LED cortable: | 62.50 |
| Vatio: | 50 |
| Voltio: | 24 |
| Ángulo de enfoque: | 120 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 60,50 |
| Lumen: | 5225 |
| Watt: | 55,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
