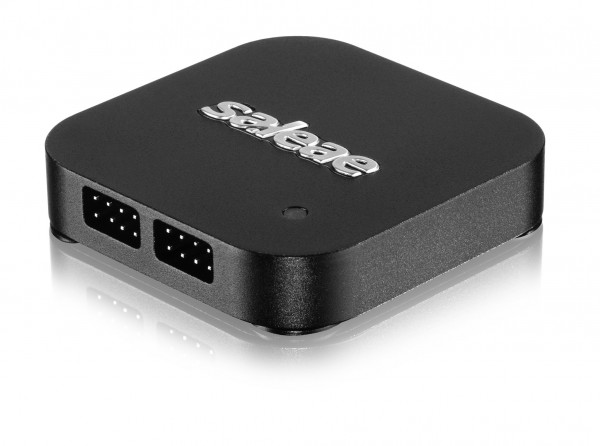

Vista preliminar: Saleae Logic Pro 8 Black

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Artículo no disponible en la cantidad deseada, tiempo de entrega bajo pedido

Llámenos Escríbanos

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 191258
Fabricantes: Saleae
Número de artículo del fabricante: SAL-00113
Código EAN: 8942820021624
Peso: 0.1kg
Garantía: 36 Meses
¿Preguntas sobre este artículo?

Logic analyzers by Saleae - The perfect thing when it comes to decoding digital protocols...más

Cerrar menú

Información del producto "Saleae Logic Pro 8 Black"

Logic analyzers by Saleae - The perfect thing when it comes to decoding digital protocols quickly and easily

	Logic Pro 8
Inputs
Analog & Digital	8
Input Resistance	2MOhm

Digital Acquisition
Max. Sample-Rate	500MS/s
Max. digital Signal Rate	100MHz
Supported Logic-Levels	1.2V - 5.5V
High-Levels	0,6V / 0,9V / 1.,5V

Analog Acquisition
Max. Sample-Rate	50 MS/s
Bandwidth	5 MHz
Resolution	12 bit
Input Voltage	± 10V

With Saleae’s Logics first decode a whole range of standards:

SPI, I2C, Serial, 1-Wire, CAN, UNI/O, I2S/PCM, MP Mode, Manchester, Modbus, DMX-512, Parallel, JTAG, LIN, Atmel SWI, MDIO, SWD, LCD HD44780, BiSS C, HDLC, HDMI CEC, PS/2, USB 1.1, Midi.

With the free SDK you can also add other protocols yourself. If you wish, we can help you with this or we can implement the protocol for you. Talk to us.

Furthermore, you can also use the channels as analog inputs. So you can view the simultaneous time course of any combination of digital and analog.

Nothing is more important than a good software!

Multi-Plattform: Windows, Mac, Linux!!

Record
Setup
Navigate
Measure
Trigger & Find
SPI, I2C & more
Search
Annotate
Export
Automate
The SDK
