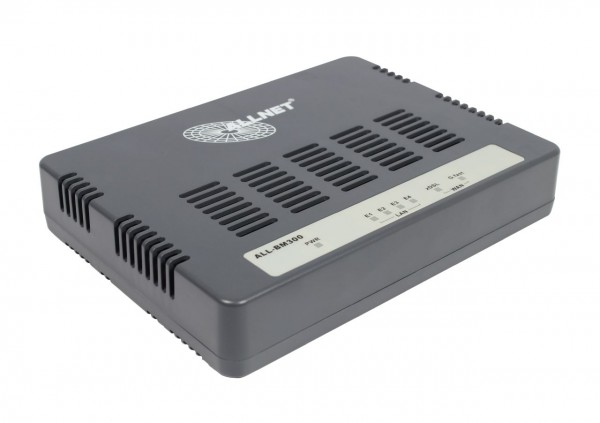

ALLNET ALL-BM300 Módem VDSL g.fast Slave
Imágenes de artículos similares, pueden diferir de la descripción del producto!
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 174279
- Fabricantes: ALLNET
- Número de artículo del fabricante: ALL-BM300
- Código EAN: 4038816090690
- Peso: 0.6kg
- Garantía: 24 Meses
- ¿Preguntas sobre este artículo?
Downloads
declaración de conformidad
Ficha ténica DE
Ficha técnica EN
Ficha técnica ES
Ficha técnica FR
Manual
Manual EN
EU RoHS und REACH Erklärung
ALLNET ISP Bridge Modem g.fast con supervisión/módem punto a punto VDSL g.fast vía esclavo...más
Información del producto "ALLNET ALL-BM300 Módem VDSL g.fast Slave"
ALLNET ISP Bridge Modem g.fast con supervisión/módem punto a punto VDSL g.fast vía esclavo administrado de 2 hilos "ALL-BM300
Highlight:
- Módem Universal VDSL2 y G.Fast Bridge
- Soporta VDS2 / VDSL2 Vectoring (100Mbit) y Super-Vectoring 35b (250Mbit conexiones DeutscheTelekom)
- Soporta el perfil g.fast 106MHz y g.fast 212MHz
- Divisor integrado para telefonía analógica y banda ancha simultáneas a través del par de 2 hilos.
- En combinación con el ALL-BM310 Bridge-Master, puede ser usado como una solución g.fast punto a punto.
El ALLNET ALL-BM300 es un módem puente multi VDSL2 & G.fast, que permite acceder a la Internet VDSL2 de forma rápida y fácil. El módem se conecta simplemente a un router de banda ancha, a un PC con cortafuegos o a un MAC, sin necesidad de realizar más ajustes (para los ajustes de la VLAN se puede configurar un ID de la VLAN en la interfaz web). Sólo tu router/cortafuegos/PC etc. necesita estar conectado al puerto/conexión LAN.
Cumple con la normativa del ITU-T y con la norma G.9700/9701 y soporta el perfil de doble onda G.fast 106/212. El ancho de banda es de hasta 1 Gbps de transmisión simétrica de datos y es perfectamente adecuado para aplicaciones FTTpd/FTTN. El ALL-BM300 es una solución rentable que proporciona a los usuarios finales acceso a Internet de alta velocidad a través de la infraestructura de cables de cobre existente. ALL-BM300 también es compatible con el perfil de super-vectorización VDSL2 35b y el perfil VDSL2 17A.
Technical Details:
|
Features: |
|
| Specifications | |
| Standards |
|
| Physical Interface |
|
| Button |
|
| Routing (ALL-BM300 only) |
IP Multicast, IGMP Proxy, Snooping Static Routing IPv4, IPv6 forwarding DHCP Server/Relay/Client IPv4/IPv6 DNS Proxy and Relay, NTP Client |
| Firewall | IPv6 Firewall Packet, URL filtering Parental Control, DMZ Host |
| Input Power | DC 12V / 2A including |
| Dimensions: | 196mm x 146mm x 40 mm ( 7.72" x 5.75" x 1.57”) |
| Net weight: | approx. 0.4 kg |
| Temperature | 0°~50° C (Operating), -20° ~70° C (Storage) |
| Humidity | 10 - 90% non-condensing |
| Marks |
|
| Package Contents: |
|
