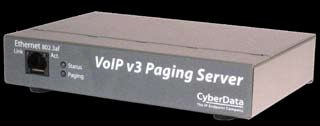

Cyberdata VoIP Paging Server V3

A second SIP extension can be configured as a night ringer playing a user-uploadable audio file.

The V3 Paging Server allows direct connection to legacy analog paging amplifiers that require a "Page Port" type input that meets a balanced 600 Ohm 10Vpp signal or a 10k Ohm Hi-Z 2vpp signal. You can also take advantage of connections for a dry contact relay (page start output) and sense input (Fault Sense Input) for additional functionality.

The easy-to-use, web-based configuration provides a graphical user interface to set up to 100 paging zones for IP paging with unique multicast address and port number combinations.

The V3 Paging Server connects via a single CAT 5 or 6 network cable to a standard PoE 802.3af compliant switch.

New Features

- Now supports 600 Ohm output

- Page start relay contacts

- Remote amp fault sensor

Features

- SIP RFC 3261 compatible

- Multicast output

- Two SIP endpoints (one for Night Ringer)

- DTMF control of zone selection

- Delayed page support

- Line-In connection for music-on-hold multicasting

- Line-out connection to support analog Amps

- User uploadable audio files

- Web-based configuration and firmware upload

- PoE 802.3af enabled (Power-over-Ethernet)
