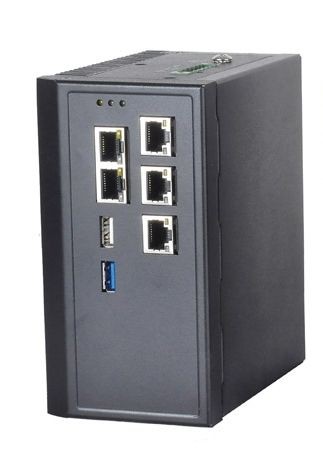

ALLNET DIN-RAIL / Hutschienen PC LEC-6032B - Atom E3845
Los precios no incluyen IVA ni gastos de transporte
Artículo no disponible en la cantidad deseada, tiempo de entrega bajo pedido
- Stock: 0
- Nº de artículo 154729
- Fabricantes: ALLNET
- Número de artículo del fabricante: LEC-6032B
- Código EAN: 4038816076618
- Peso: 2kg
- Garantía: 12 Meses
- ¿Preguntas sobre este artículo?
Downloads
Ficha ténica DE
Ficha técnica EN
EU RoHS und REACH Erklärung
SCADA / ICS Security PC with Intel Atom E3845 CPU and Advanced LAN Bypass
Key features
- Fanless and compact design
- Intel® Atom™ E3845 1.91GHz SoC CPU
- Wide Temperature Support: -40~70ºC
- 6032C with 2 x GbE SFP Fiber, 6032F with 4 x GbE SFP Fiber
- ESD/surge protection on serial COM ports for harsh environments
- 3 or 5 x GbE LAN with 1 or 2 pair Gen.3 LAN bypass
- DIN rail or wall mounting options
- 1 x USB 3.0 and 1x USB 2.0 port
Overview
LEC-6032 is a compact fanless industrial cyber security platform with Intel® "Bay Trail" Atom™ E3845 CPU. Deployed in remote, unmanned and harsh environments, LEC-6032 supports isolated COM ports, rich LAN ports with advanced Gen.3 LAN bypass and extended operating temperature from -40 ºC to 70 ºC. It also boosts for its flexible design with versatile mounting options (wall mount or DIN-Rail) and Ethernet LAN configuration, making it perfect for performing network security measures at critical infrastructure such as oil refinery, substation, power plants and manufacturing factories.
Specifications
| Platform | |
| CPU | Intel® Atom™ E3845 1.91GHz SoC CPU |
| Chipset | SoC |
| Memory Technology | DDR3L SO-DIMM x1 |
| Memory Capacity | Up to 8 GB |
| Storage | |
| SATA storage | 1x SATA connector, optional 2.5" drive bay |
| I/O | |
| Ethernet controller | Intel i210-IT |
| Default LAN | 6032B: 5 x RJ45 |
| Bypass | 6032B: 2 pairs |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Serial ports | LEC-6032B: 1 x Internal pin header (RS-232 only) |
| USB 2.0 | 2 x Type A |
| USB 3.0 | 1 x Type A |
| Power and Mechanical | |
| Power input | 12 ~ 36 Vdc |
| OS and Certifications | |
| Operating System | Windows 7, Windows 7 Embedded, Linux Kernel 3.X |
| Certifications | CE, FCC Class A, RoHS |
| Physical and Environmental | |
| Storage temperature | -40°C to 85°C |
| Operating temperature | -40°C to 75°C |
| Dimensions (W x H x D) | 78 mm x 146 mm x 127 mm (3.07" x 5.75" x 5.00") |
| Watchdog | Watchdog timer 256 level time interval system reset, software programmable |
| Casing material | Aluminum |
