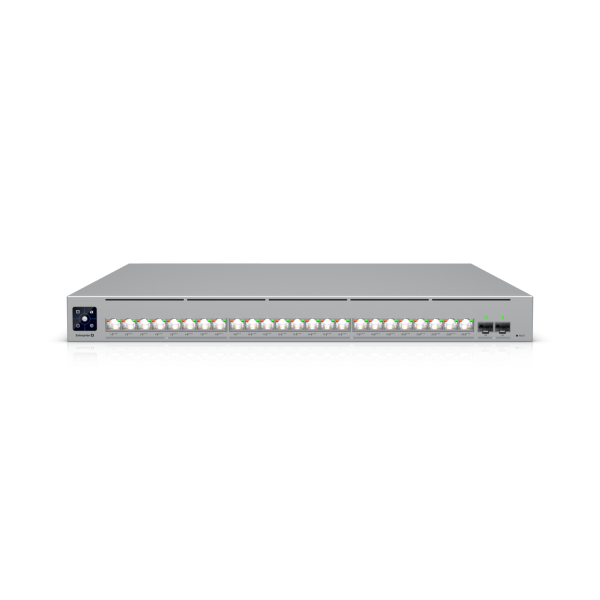

Ubiquiti Switch full managed Layer3 26 Port • 16x 10GbE • 8x 2,5GbE • PoE Budget 1050W • 24x PoE bt • 2x SFP28 • 19" • UniFi • ECS-24-PoE

Vista preliminar: Ubiquiti Switch full managed Layer3 26 Port • 16x 10GbE • 8x 2,5GbE • PoE Budget 1050W • 24x PoE bt • 2x SFP28 • 19" • UniFi • ECS-24-PoE

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 239950
Fabricantes: Ubiquiti_Enterprise
Número de artículo del fabricante: ECS-24-PoE
Código EAN: 810084698907
Peso: 9.3kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

Enterprise-class 24-port Layer 3 Etherlighting PoE+++ switch with high-capacity 10GbE RJ45 and...más

Cerrar menú

Información del producto "Ubiquiti Switch full managed Layer3 26 Port • 16x 10GbE • 8x 2,5GbE • PoE Budget 1050W • 24x PoE bt • 2x SFP28 • 19" • UniFi • ECS-24-PoE"

Enterprise-class 24-port Layer 3 Etherlighting PoE+++ switch with high-capacity 10GbE RJ45 and 25G SFP28 ports for a high-availability system design.

Highlights:

(16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90 W capable)
(2) 25G SFP28 ports
(2) Included hot-swappable power supply modules for redundancy
(4) Included hot-swap fan modules with a backup

Technical data:

Mechanical
Dimensions	442 x 496 x 44 mm (17.4 x 19.5 x 1.7 inches)
Weight	Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.3 kg (20.5 lb)
Walking material	SGCC steel
Sliding rail support	The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and post depths from 650 to 1,000 mm (25.639.4").
Hardware
Management interface	Ethernet in-band
Network interface	(16) 10/5/2.5/1 GbE, 100/10 MbE RJ45 ports (8) 2.5/1 GbE, 100/10 MbE RJ45 ports (2) 25/10/1G SFP28 ports
PoE interface	(24) 90W PoE+++ (pair A 1, 2+; 3, 6-) (pair B 4, 5+; 7, 8-)* *802.3bt type 4, class 8
Total non-blocking throughput	230 Gbit/s
Switching power	460 Gbit/s
Forwarding tariff	342.24 Mpps
Performance method	(2) Universal input, 100240 V AC, 50/60 Hz
Power supply	(2) Hot-swappable AC/DC 600 W power supply modules* _{*Power supply modules operate with 1 + 1 redundancy.}
Supported voltage range	100240 V alternating current
Max. Power consumption	Without PoE output: 150 W With PoE output: 1,200 W
Total available PoE	1,050 W* _{*With (2) 1,200 W power supply modules (available separately). The total PoE available is 450 W with (2) 600 W modules.}
Max. PoE power per port through PSE	Power: 90 W
Power range PoE mode	5057 V
Lüftermethod	(4) Hot-swappable fan modules* *Lüftermodules work with 3 + 1 redundancy.
LCM display	(1) 1.3-inch touch screen
Button	Factory reset
Operating ambient temperature	-5 to 40 °C (23 to 104 °F)
Humidity during operation	10 to 90 % non-condensing
Certifications	CE, FCC, IC
Switching functions
Layer 2 functions	IGMP snooping STP/RSTP with prioritisation and deactivation at port level Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast/broadcast rate limiting Blocking of MAC addresses Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping/guarding Output rate limiting LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 functions	DHCP for locally managed networks DHCP relay Inter-VLAN routing between networks on the same switch Static routing between local networks Network isolation with ACLs
Etherlighting
Ethernet	Speed/connection localise Native VLAN/Network
SFP28	Speed/connection localise Native VLAN/Network
LEDs
System	Status
Ethernet	Link/Activity
