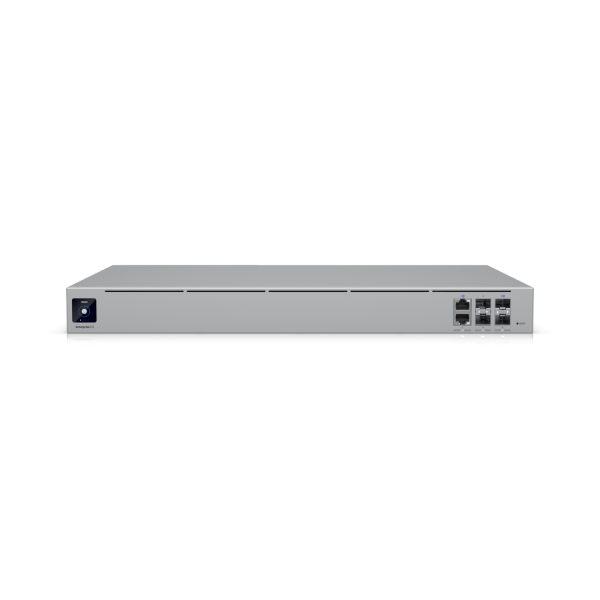

Ubiquiti Enterprise Fortress Gateway • 2x SFP28 • 2x SFP+ • 2x 2,5 GbE • UniFi • EFG

Vista preliminar: Ubiquiti Enterprise Fortress Gateway • 2x SFP28 • 2x SFP+ • 2x 2,5 GbE • UniFi • EFG

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Artículo no disponible en la cantidad deseada, tiempo de entrega bajo pedido

Llámenos Escríbanos

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 231899
Fabricantes: Ubiquiti_Enterprise
Número de artículo del fabricante: EFG
Código EAN: 8103540257162
Peso: 8.33kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

25G Cloud Gateway with support for over 500 UniFi devices/üte/üover 5.000 clients, 12.5 Gbps...más

Cerrar menú

Información del producto "Ubiquiti Enterprise Fortress Gateway • 2x SFP28 • 2x SFP+ • 2x 2,5 GbE • UniFi • EFG"

25G Cloud Gateway with support for over 500 UniFi devices/üte/üover 5.000 clients, 12.5 Gbps IPS routing and complete high availability.

Executes UniFi Network for full-stack network management

Shadow Mode High Availability with automatic failover ensures uninterrupted connectivity (VRRP)*

12.5 Gbit/s Routing with IDS/IPS

Licence-free real-time inspection of encrypted packets with NeXT AI Inspection (SSL/TLS decryption)

(2) 25G SFP28**, (2) 10G SFP+** and (2) 2.5 GbE RJ45 ports (all LAN/WAN remappable)

(2) included hot-swap power supplies for power redundancy

1.3-inch touchscreen

Includes 90 days professional phone support ***

_{*Requires UniFi OS 4.0 and higher. Must be paired with another EFG.

**Pair it with an official SFP28 module , SFP+ module or SFP+ to RJ45 adapter for the best experience.}

Technical specifications

Mechanical
Maße	442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight	3.4 kg (7.5 pounds)
Favourite materials	Front panel: CNC aluminium. Top cover/base: SGCC steel
Hardware
Processor	Quad-Core ARM® Cortex®-A57 with 1.7 GHz
Memory information	2 GB DDR4
Management interface	Ethernet
Network interface	LAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port WAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port
Power supply method USA worldwide	(1) Universal AC input, 125 V AC, 2.7 A max, 60 Hz (1) RPS direct current input, 11.5 V direct current, 2.87 A (1) Universal alternating current input, 200–240 V alternating current, 1.7 A max., 50/60 Hz (1) RPS DC input, 11.5 V DC, 2.87 A
Power supply	AC/DC, internal, 50 W
Max. Energy consumption	30W
ESD/EMP protection	Air: ± 15 kV, Contact: ± 8 kV
LCM display	(1) 1.3-inch touchscreen
key	Factory settings reset
Operating temperature	-10 to 40 °C (14 to 104 °F)
Operating humidity	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Gateway functions
Performance	Redundant WAN with failover and load balancing. WLAN QoS with UniFi APs . Application-, domain- and country-based QoS. Identification of applications and device types. Additional Internet failover with LTE backup. Internet quality and outage reports
Next generation security	Application-specific firewall rules. Signature-based IPS/IDS threat detection. Content, country, domain and advertising filtering. VLAN/subnet-based traffic segmentation. Complete stateful firewall
Extended cross-linking	Licence-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-Click-Teleport* and Identity Enterprise VPN** Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support When paired with a Cloud Key or official UniFi hosting . *When paired with a cloud key.
LEDs
Ethernet	Grün/Bernstein
SFP+	Whiteß Grün
AC socket/RPS	Blue
Software
Management application	UniFi network: version 5.14.11 and higher
