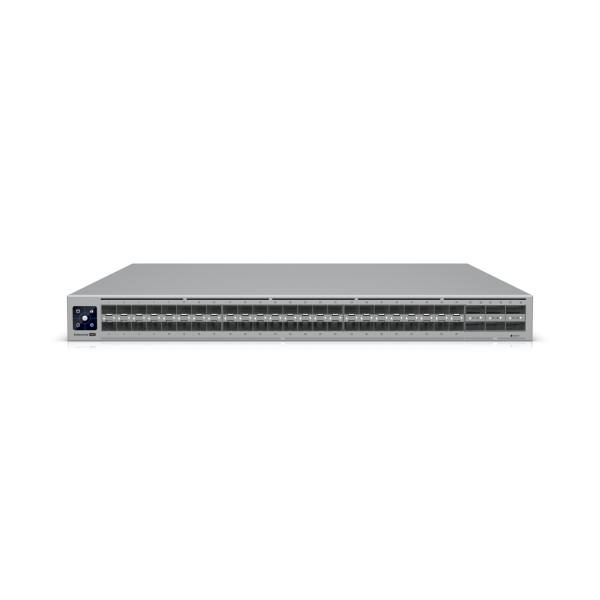

Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation
![Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation](https://shop.allnet.es/media/image/32/af/85/A235193_200x200.png "Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation")
![Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation](https://shop.allnet.es/media/image/0d/5a/cb/A235193_2_200x200.png "Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation")
![Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation](https://shop.allnet.es/media/image/f0/3c/21/A235193_3_200x200.png "Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation")
![Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation](https://shop.allnet.es/media/image/c5/63/a7/A235193_4_200x200.png "Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation")
![Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation](https://shop.allnet.es/media/image/cb/7e/f9/A235193_5_200x200.png "Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation")
![Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation](https://shop.allnet.es/media/image/36/7f/85/A235193_6_200x200.png "Vista preliminar: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation")
Imágenes de artículos similares, pueden diferir de la descripción del producto!
Los precios no incluyen IVA ni gastos de transporte
Proablemente disponible nuevamente a partir 12 de agosto de 2025
- Stock: 0
- Nº de artículo 235193
- Fabricantes: Ubiquiti_Enterprise
- Número de artículo del fabricante: ECS-Aggregation
- Código EAN: 810084697139
- Peso: 17.28kg
- Garantía: 12 Meses
- ¿Preguntas sobre este artículo?
EU RoHS und REACH Erklärung
Project notification at ubiquiti@allnet.de.
1.8 Tbps high-density 100G/25G Layer 3...más
Información del producto "Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation"
Project notification at ubiquiti@allnet.de.
1.8 Tbps high-density 100G/25G Layer 3 Etherlighting aggregation switch with MC-LAG support for highly reliable system design.
(48) 25G SFP28 and (6) 100G QSFP28 ports
Support for Multi-Chassis Link Aggregation (MC-LAG)*
Support for automatic Layer 3 failover (VRRP)**
Dynamic BGP routing***
(2) hot-swappable power supply modules with 1+1 redundancy included in the scope of delivery
(5) hot-swap fan modules with 4+1 redundancy included in the scope of delivery
*Must be paired with another Enterprise Campus Aggregation
. **Planned for the next version of the UniFi Network Application.
***OSPF support is planned for an upcoming version of the UniFi Network Application.
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5 inches) |
| Weight | 9.9 kg |
| Housing material | SGCC steel |
| Sliding rail support | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and post depths from 650 to 1,000 mm (25.639.4"). |
| Hardware | |
| Management interface | Ethernet in-band |
| Network interface | (6) 40G/100G QSFP28 ports (48) 10G/25G SFP28 ports* 1 Gbit/s port speed is not supported |
| Total non-blocking throughput | 1.8 Tbit/s |
| Switching power | 3.6 Tbit/s |
| Forwarding tariff | 2.3 basis points |
| Performance method | (2) Universal input, 100240 V AC |
| Power supply | (2) Hot-swappable AC/DC 550W power supply modules |
| Supported voltage range | 100240 V alternating current |
| Max. Power consumption | 340 W |
| ESD/EMP protection | Air: ± 12kV, contact: ± 8kV |
| Services | SMB Layer3 100G/25G fibre optic switch |
| LCM display | (1) 1.3-inch touch screen |
| Operating ambient temperature | -5 to 40 °C (23 to 104 °F) |
| Humidity during operation | 10 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| Switching functions | |
| Layer 2 functions | IGMP snooping STP/RSTP with prioritisation and deactivation at port level Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast/broadcast rate limiting Blocking of MAC addresses Flow control Jumbo frames Proprietary loop protection DHCP snooping/guarding Egress rate limiting LLDP-MED Port restricted by MAC Device isolation with ACLs MC-LAG support |
| Layer 3 functions | DHCP for locally managed networks DHCP relay Inter-VLAN routing between networks on the same switch Static routing between local networks Automatic failover (VRRP)* *Support is planned for the next version of the UniFi Network Application. |
| Etherlighting | |
| SFP28/QSFP28 | Localisation of Speed/connection Native VLAN/network |
| LEDs | |
| System | Status |
| Application requirements | |
| UniFi network | Version 8.5.6 and higher |
