FriendlyELEC NanoPI R5C Dual-2.5G ETH 4G RAM / 32GB Combo with Case, with Wifi
Imágenes de artículos similares, pueden diferir de la descripción del producto!
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 222158
- Fabricantes: ALLNET
- Número de artículo del fabricante: R5C_4G_32mmc_combo_wifi
- Código EAN: 4038816130112
- Peso: 0.178kg
- Garantía: 12 Meses
- ¿Preguntas sobre este artículo?
Downloads
declaración de conformidad
Ficha ténica DE
EU RoHS und REACH Erklärung
CPU
Model: Rockchip RK3568B2 Number of Cores: Quad-core ARM Cortex-A55 Frequency: 4...más
Información del producto "FriendlyELEC NanoPI R5C Dual-2.5G ETH 4G RAM / 32GB Combo with Case, with Wifi"
| CPU | Model: Rockchip RK3568B2 Number of Cores: Quad-core ARM Cortex-A55 Frequency: 4 x Cortex-A55 up to 2.0GHz |
| GPU | Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile |
| VPU | 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder |
| NPU | Support 0.8T |
| Memory | RAM: 1GB/2GB/4GB LPDDR4X |
| Storage | MicroSD Slot x1: support UHS-I Flash:0GB/8GB/32GB eMMC |
| Connectivity | Ethernet: PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip M.2 E-Key x1: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module |
| Video Output | HDMI: support HDMI1.4 and HDMI2.0 operation support up to 10 bits Deep Color modes support up to 1080p@120Hz and 4096x2304@60Hz support 3-D video formats |
| USB | USB 3.0 Host x2: USB 3.2 Gen 1 Type-A USB-C x1: Power Only(5V) |
| Pin-header | Debug: Debug UART x1, 3 Pin 2.54mm header, 3.3V level, 1500000bps |
| LED | SYS LED(Red) x1 WAN LED(Green) x1 LAN1 LED(Green) x1 LAN2 LED(Green) x1 |
| Button | MASK Button x1 for eMMC update User Button x1 |
| Others | RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Working Temperature: 0? to 70? |
| Power | USB-C, 5V input |
| OS Support | FriendlyWrt 21.02 FriendlyWrt 22.03 Android 12 Tablet Android 12 TV FriendlyCore Lite 20.04 Debian 10 Desktop Debian 11 Desktop Buildroot |
| Kernel version | Linux-5.10-LTS U-boot-2017.09 |
| PCB | 8 Layer |
| Weight | 38g(without Case) / 149g(with Case) |

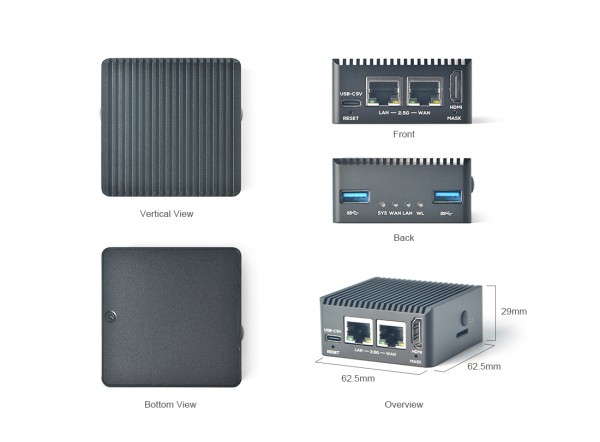

| Dimension | 58x58x1.6mm (without Case) / 62.5x62.5x29mm (with Case) |
