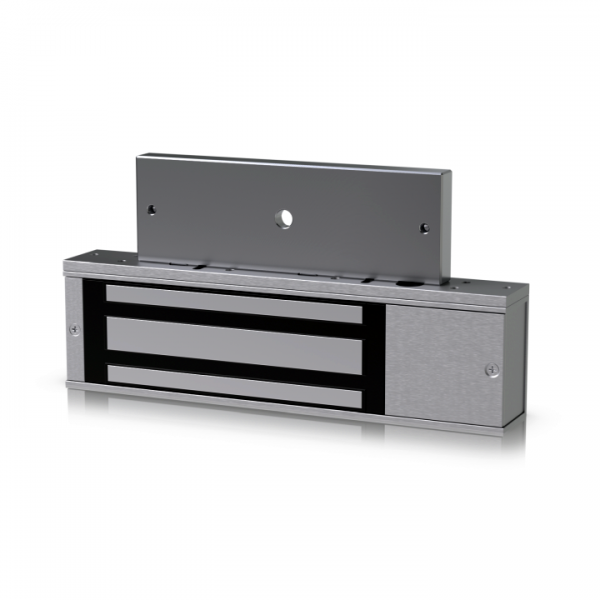

Ubiquiti Magnetic Lock Â• UniFi Â• UA-Lock-Magnetic-540kg

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Artículo no disponible en la cantidad deseada, tiempo de entrega bajo pedido

Llámenos Escríbanos

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 231260
Fabricantes: Ubiquiti
Número de artículo del fabricante: UA-Lock-Magnetic-540kg
Código EAN: 810010076519
Peso: 3kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

Fail-safe magnetic lock for doors that open inwards and outwards, which is connected to a UniFi...más

Cerrar menú

Información del producto "Ubiquiti Magnetic Lock Â• UniFi Â• UA-Lock-Magnetic-540kg"

Fail-safe magnetic lock for doors that open inwards and outwards, which is connected to a UniFi Access Hub.

Hält up to 270 kg or 540 kg (600-1,200 lb)

Can be installed on a wide range of door types*

_{*— Access lock magnetic 270 kg: All types, including full glass

— Access lock magnetic 540 kg: All types, excluding full glass}

Compatibilityät :

Technical specifications

Mechanical
Maße	UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm (9.8 x 1.7 x 1 inch) Mounting plate: 250 x 25 x 5 mm (9.8 x 1 x 0.2 inches) Anchor: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4 inches) UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6 inches) Mounting plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2 inches) Anchor: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6 inches)
Weight	UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Mounting plate: 70 g (0.15 lb) Anchor: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Mounting plate: 145 g (0.3 lb) Anchor: 1.4 kg (3.1 lb)
Features	Gerät/Mountings: Aluminium Fitting: steel
Hardware
Voltage	12 V DC
Current energy	UA-Lock-Magnetic-270kg: 800mA ±10% UA-Lock-Magnetic-540kg: 500mA ±10%
Cable connection	Connect the following terminals to the UA hub: Lock 12 V/NC (connect to Power Lock Relay NC on the UA hub) Lock 12 V/COM (connect with Powered Lock Relay COM on the UA hub) DPS/+ (DPS+ on the UA hub) DPS/- (DPS on the UA hub)
Lock type	Fail-safe lock Single door
Holding power	UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)
LED	Greün: unlocked Red: locked
Suitability	UA-Lock-Magnetic-270kg: wood/metal/glass UA-Lock-Magnetic-540kg: wood/metal
Mounting accessories	UA-Lock-Magnetic-270kg L-bracket: door thickness < 42 mm (< 1.7 inches), outward opening door Z-angle: is used with L-angle for doors opening inwards U-angle: is used with glass door UA-Lock-Magnetic-540kg L-bracket: door thickness < 42 mm (< 1.7 inch), door opening outwards Z-angle: is used with L-angle for doors opening inwards
Operating ambient temperature	-10 to 50 °C (14 to 122 °F)
Humidity during operation	5 to 90 % non-condensing
Certifications	FCC, IC, CE
