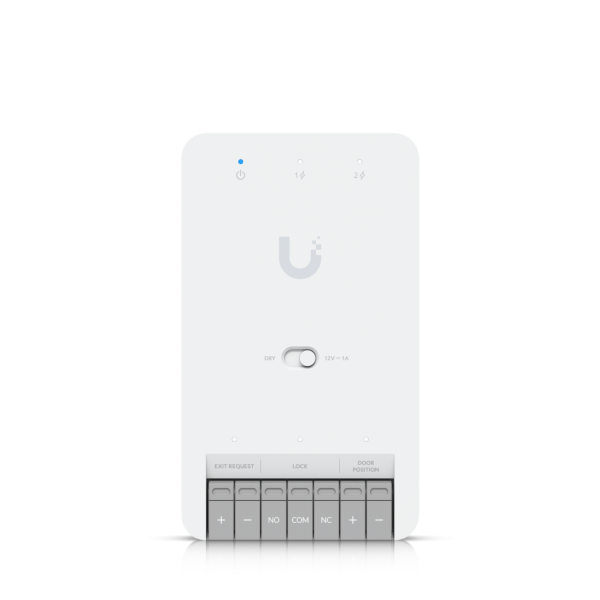

Ubiquiti UniFi Access Door Hub Mini • UA-Hub-Door-Mini

Vista preliminar: Ubiquiti UniFi Access Door Hub Mini • UA-Hub-Door-Mini

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Proablemente disponible nuevamente a partir 21 de octubre de 2025

Llámenos Escríbanos

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 239834
Fabricantes: Ubiquiti
Número de artículo del fabricante: UA-Hub-Door-Mini
Código EAN: 810084698839
Peso: 0.19kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

Compact access control hub for a single door. Highlights: (1) Lock connection (12V and...más

Cerrar menú

Información del producto "Ubiquiti UniFi Access Door Hub Mini • UA-Hub-Door-Mini"

Compact access control hub for a single door.

Highlights:

(1) Lock connection (12V and dry switchable)
(2) Additional inputs (sensor and button)
Connection and power supply via PoE++
Connect up to two UniFi Access Readers or Protect Cameras

Technical data:

Mechanical

Dimensions

113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1 inches)

Weight

190 g

Favourite material

Polycarbonate, metal

Hardware

Network interface

(3) GbE RJ45 ports

Power method

PoE++

Max. Power consumption

Without PoE output: 19 W
With PoE output: 50 W

PoE input

50 V direct current, 1 A

PoE output

(2) PoE ports, 31 W in total

Button

(1) Factory reset
(1) Dry/Wet switch

Digital input

Prompt to leave/position sensor

Output relay

Dry: 30 V DC, 1 A
Wet: 12 V DC, 1 A

Recommended max. cable length


	18 AWG UACC cable lock relay length	20 AWG length	22 AWG length	24 AWG length
UA-Lock-Electrical (400mA)	100 m	66 m (217 feet)	42 m (138 feet)	25 m
UA-Lock-Magnetic-270kg (800mA)	46 m (151 feet)	30 m (98 feet)	20 m	12 m (29 feet)
UA-Lock-Magnetic-540kg (500mA)	80 m	51 m	32 m (105 feet)	20 m
Other keys (1A)	36 m (118 feet)	24 m (79 feet)	15 m (49 feet)	9 m (30 feet)

Requirements for PoE cabling

The recommended minimum power category is cable 5e. The power category used should correspond to the transmission speed required at the installation site.
The minimum conductor cross-section for the connection between PSE or Power Injector and PD is 26 AWG (0.13 mm2 ⁾ for patch cables; 24 AWG (0.21 mm2 ⁾ for horizontal or riser cables.

Operating environment

Suitable for indoor use only

Operating ambient temperature

-10 to 40 °C (14 to 104 °F)

Humidity during operation

5 to 90 % non-condensing

Software information

The software version of a product can be checked at https://unifi.ui.com üft.

Certifications

CE, FCC, IC

Document number and issue date or revision status

UA-Hub-Tür-Mini, V01

Software

Administrative application

UniFi Access: Version 2.5.2 and higher

LEDs

PoE input

System status

PoE output

Cable status/activity

Input/output relay

Line status/activity
