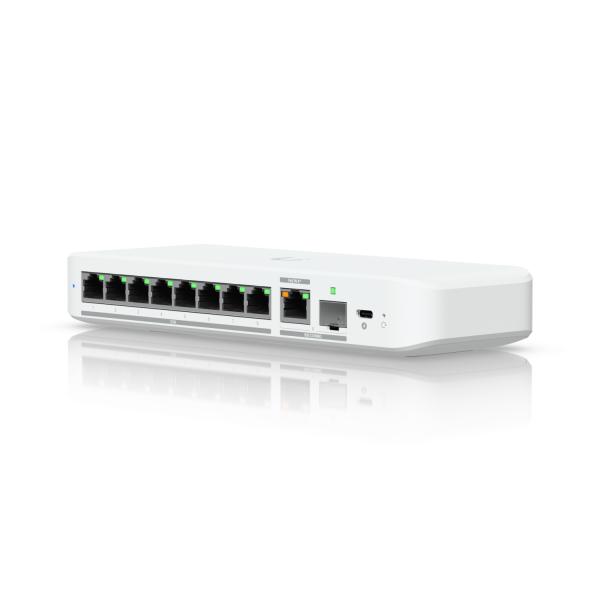

Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE • 1x 10 GbE PoE at In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8

Vista preliminar: Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE • 1x 10 GbE PoE at In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Artículo no disponible en la cantidad deseada, tiempo de entrega bajo pedido

Llámenos Escríbanos

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 239767
Fabricantes: Ubiquiti
Número de artículo del fabricante: USW-Flex-2.5G-8
Código EAN: 810084696057
Peso: 0.42kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

Flexible 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be...más

Cerrar menú

Información del producto "Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE • 1x 10 GbE PoE at In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8"

Flexible 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be supplied with power using a USB-C or PoE+ adapter.

Highlights:

(8) 2.5 GbE ports
(1) 10 GbE PoE+ input port for power / SFP+ port combination
Optional power supply with supplied 5V, 3A USB-C adapter

Technical data:

Mechanical
Dimensions	212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3 inches)
Weight	420 g (14.8 oz)
Favourite material	Polycarbonate
Mounting	Wall mounting possible (kit included in scope of delivery) DIN rail mounting possible (available separately)
Hardware
Management interface	Ethernet in-band
Network interface	(8) 2.5/1 GbE RJ45 ports (1) 10G SFP+ or 10/5/2.5/1 GbE combo port* If only one is active, GbE can be supplied with power and SFP+ can be used for data
Total non-blocking throughput	30 Gbit/s
Switching performance	60 Gbit/s
Forwarding tariff	44.64 Mpps
Performance method	(1) Power supply unit, 5 V DC, 3 A (1) PoE+ (pairA 1, 2+; 3, 6-)(pairB 4, 5+; 7, 8-)
Power supply	External AC/DC adapter UniFi PoE switch
Supported voltage range	AC/DC input: 5 V DC PoE input: 42.557 V DC
Max. Power consumption	14W
Button	Factory reset
Operating ambient temperature	-20 to 45 °C (-4 to 113 °F)
Humidity during operation	10 to 90 % non-condensing
Certifications	CE, FCC, IC
Switching functions
Layer 2 functions	STP / RSTP with prioritisation and deactivation at port level Storm control Multicast/broadcast rate limiting flow control Jumbo -frames Egress rate limiting Proprietary loop protection Port isolation Port mirroring
LEDs
System	Blue/white;: Power supply. Flashing white: Boot up is running. Flashing blue: Firmware update. Solid white: Factory settings; device is waiting for acceptance. Solid blue: Device has been accepted.
Ethernet	Link/Activity PoE input
SFP+	Link/Activity
Application requirements
UniFi network	Version 9.0.108 and higher
