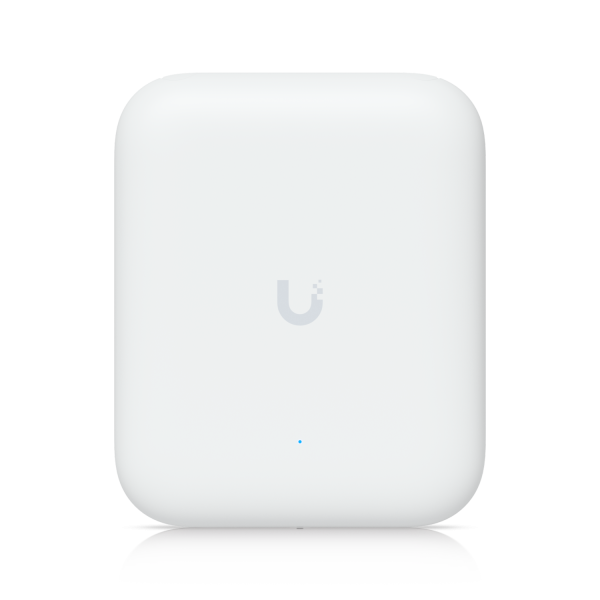

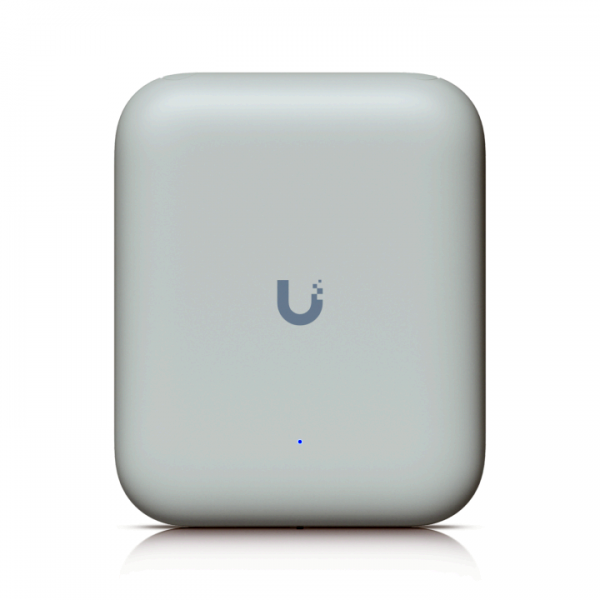

Ubiquiti Wireless AP WIFI7 Â• BE9200 Â• 4x4 Â• Outdoor Â• 2,5 GbE Â• UniFi Â• U7-Pro-Outdoor

Vista preliminar: Ubiquiti Wireless AP WIFI7 Â• BE9200 Â• 4x4 Â• Outdoor Â• 2,5 GbE Â• UniFi Â• U7-Pro-Outdoor

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Artículo no disponible en la cantidad deseada, tiempo de entrega bajo pedido

Llámenos Escríbanos

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 239830
Fabricantes: Ubiquiti
Número de artículo del fabricante: U7-Pro-Outdoor
Peso: 1.33kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

All-weather IP67 WiFi 7 AP with 6 spatial streams, integrated directional super antenna and...más

Cerrar menú

Información del producto "Ubiquiti Wireless AP WIFI7 Â• BE9200 Â• 4x4 Â• Outdoor Â• 2,5 GbE Â• UniFi Â• U7-Pro-Outdoor"

All-weather IP67 WiFi 7 AP with 6 spatial streams, integrated directional super antenna and articulated mount.

Highlights:

WLAN 7
6 spacious beaches
465 m² (5,000 ft²) free-space coverage with the integrated directional super antenna
Switchable via software from internal directional antennas to supplied external omnidirectional antennas
More than 300 connected devices
Power supply via PoE+
2.5 GbE uplink
Versatile wall and pole mounting
Weatherproof (can be used outdoors)

Technical data:

Mechanical
Dimensions	Without bracket: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6 inches) With holder: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8 inches)
Weight	Device: 1.2 kg (2.6 lb) Bracket: 130 g (0.3 lb)
Walking material	UV-stabilised polycarbonate, aluminium alloy
Mounting material	UV-stabilised polycarbonate
Diameter of the pole mount	2563.5 mm (12.5") at the tube diameter
Wind resistance	74.6 N at 200 km/h (16.8 lbf at 125 mph)
Weather resistance	IPX6 IP67 with cable gland kit (included in the scope of delivery)
Hardware
Network interface	(1) 1/2.5 GbE RJ45 connection
Management interface	Ethernet
Power method	PoE+
Power supply	UniFi PoE switch
Supported voltage range	42.557 V direct current
Max. Power consumption	21W
Max. Transmission power 2.4 GHz 5 GHz 6 GHz	23 dBm 29 ??dBm
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO)
Max. Data rate 2.4 GHz 5 GHz 6 GHz	688 Mbit/s (BW40) 8.6 Gbit/s (BW240)
Antenna gain 2.4 GHz 5 GHz 6 GHz	Directional internal: 8 dBi / external omni: 6 dBi Directional internal: 11 dBi / external omni: 8 dBi
Antenna cone width 2.4 GHz 5 GHz 6 GHz	90° 90°
Antennas	(1) Internal directional antenna (2) RP-SMA connectors for external antenna
LEDs	(1) Power: white/blue (4) Mesh signal: blue
Button	Factory reset
Mounting	Wall, ceiling, pole (included in scope of delivery)
Operating ambient temperature	-30 to 60 °C (-22 to 140 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	CE
Software
WLAN standards	802.11a/b/g/n/ac/ax/be (WLAN 6, WLAN 7)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Rate limitation per user
Isolation of guest traffic	Supported
Concurrent clients	300+
Supported data rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11b	1, 2, 5.5, 11 Mbit/s
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11n	6.5 Mbit/s to 600 Mbit/s (MCS0 MCS31, HT 20/40)
802.11ac	6.5 Mbit/s to 3.4 Gbit/s (MCS0 MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WLAN 6)	7.3 Mbit/s to 4.8 Gbit/s (MCS0 MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WLAN 7)	7.3 Mbit/s to 8.6 Gbit/s (MCS0 MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
Application requirements
UniFi network	Version 9.0.108 and higher
