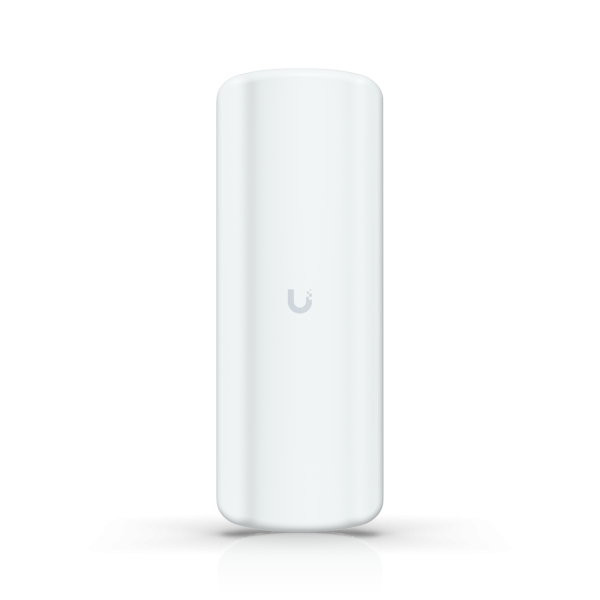

Ubiquiti Wireless Device Bridge Pro Sector Â• AC400 Â• 2x2 Â• Outdoor Â• 1 GbE Â• PoE Â• UniFi Â• UDB-Pro-Sector

Vista preliminar: Ubiquiti Wireless Device Bridge Pro Sector Â• AC400 Â• 2x2 Â• Outdoor Â• 1 GbE Â• PoE Â• UniFi Â• UDB-Pro-Sector

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Im Zulauf. Liefertermin unbekannt

Llámenos Escríbanos

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 243557
Fabricantes: Ubiquiti
Número de artículo del fabricante: UDB-Pro-Sector
Peso: 0.835kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

5 GHz point-to-multipoint access point that wirelessly connects over 40 Device Bridge Pro...más

Cerrar menú

Información del producto "Ubiquiti Wireless Device Bridge Pro Sector Â• AC400 Â• 2x2 Â• Outdoor Â• 1 GbE Â• PoE Â• UniFi Â• UDB-Pro-Sector"

5 GHz point-to-multipoint access point that wirelessly connects over 40 Device Bridge Pro clients at distances of over 5 km.

Highlights:

Enables point-to-multipoint (PtMP) connectivity with over 40 UDB Pro clients
90° sector coverage
Power supply via PoE
Mast mounting
Weatherproof (outdoors)

Technical data:

Mechanical
Dimensions	360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8 inches)
Weight	Without mount: 782 g (1.7 lb) With bracket: 835 g (1.8 lb)
Walking material	UV-resistant polycarbonate
Mounting material	UV-stabilised polycarbonate, stainless steel
Diameter of the pole mount	0.92.4" (2460 mm) at the tube diameter
Wind load	128.2 N at 200 km/h (28.8 lbf at 125 mph)
Weather resistance	IPX6
Hardware
Network interface	(1) GbE RJ45 connection
Management interface	Ethernet -WLAN
Power method	PoE
Power supply	UniFi PoE switch
Supported voltage range	42.557 V direct current
Max. Power consumption	6W
Max. Transmission power 2.4 GHz 5 GHz 6 GHz	25 dBm
Max. Data rate 2.4 GHz 5 GHz 6 GHz	400 Mbit/s (BW40)
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2
Antenna gain 2.4 GHz 5 GHz 6 GHz	17 dBi
Antenna	Internal
Range	5+ km
LEDs	Power, Ethernet
Button	Factory reset
Mounting	Pole (included in the scope of delivery)
Ambient temperature	-40 to 60 °C (-40 to 140 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Software
WLAN standards	802.11a/n/ac
Wireless security	WPA2 AES (always on)
Number of supported clients	50+
Operating frequency* USA/CA Worldwide	U-NII-1 51505250 MHz U-NII-2A 52505350 MHz U-NII-2C 54705725 MHz U-NII-3 57255850 MHz 51505875 MHz *Depending on the regulatory region
Channel bandwidth	20/40 MHz
Max. conducted transmission power	25 dBm (combined)
Modulation	BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (?), 64QAM (¾), 64QAM (?), 256QAM (¾), 256QAM (?)
