Synergy 21 LED Flex Strip 60 KW DC24V 24W IP20 * Project article*

Vista preliminar: Synergy 21 LED Flex Strip 60 KW DC24V 24W IP20 * Project article*

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

Downloads

Ficha ténica DE

Ficha técnica EN

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 207336
Fabricantes: Synergy 21 LED
Número de artículo del fabricante: S21-LED-TOM01101
Código EAN: 4038816114655
Peso: 0.5kg
Garantía: 60 Meses
¿Preguntas sobre este artículo?

Voltage: 24V, max.1A Watt: 4,8W±10% Light colour: cool white, 6500K±250k Brightness: 450lm...más

Cerrar menú

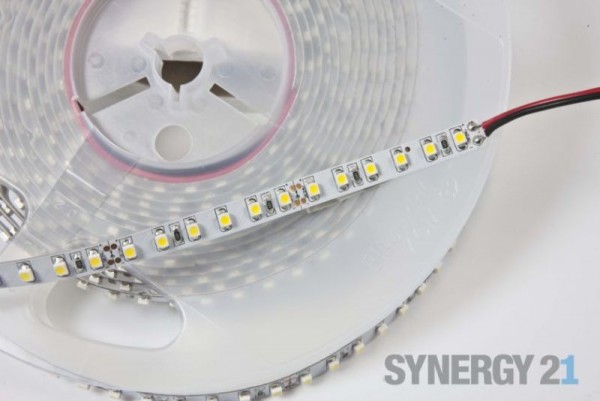

Información del producto "Synergy 21 LED Flex Strip 60 KW DC24V 24W IP20 * Project article*"

Voltage: 24V, max.1A
Watt: 4,8W±10%
Light colour: cool white, 6500K±250k
Brightness: 450lm
CRI>90
Beam angle: 120°
Protection class: IP20
Connection cable: 3m with shrink sleeve
Number of LEDs: 60*3528SMD
Dimensions: 1000*8*3 mm
PCB colour: white, open cable end
Operating temperature: -25°C to +40°C
Weight: 0.090 kg
Can be shortened every 6 LEDs
Adhesive tape: yes 3M on the back

Energy efficiency class: A
kWh/1000h: 5

Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split strip when no current is present.

Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.

Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips

Produktmerkmale:

Altura Tira LED:	3
Amperio:	1
Ancho Tira LED:	8
CC oder CV:	CV
CRI:	>80
Cinta adhesiva:	Sí
Clase de protección:	IP20
Color de luz:	Blanco Cálido
Largo Tira LED:	5000
Regulable:	depende de la fuente de alimentación
Vatio:	24
Voltio:	24
Ángulo de enfoque:	120
