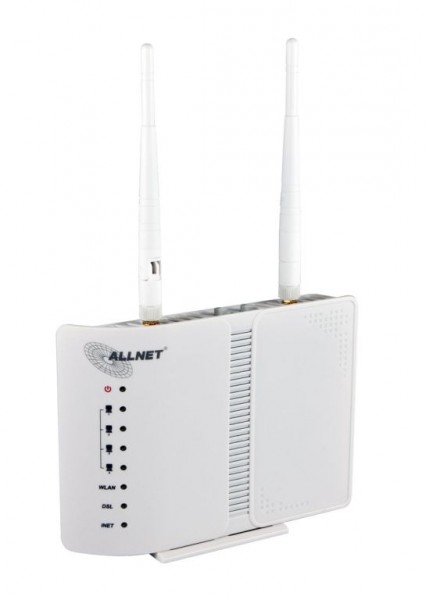

ALLNET WR02400N Router-Modem WiFi ADSL2+ Anexo B/J

Vista preliminar: ALLNET WR02400N Router-Modem WiFi ADSL2+ Anexo B/J

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

Downloads

declaración de conformidad

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 115050
Fabricantes: ALLNET
Número de artículo del fabricante: ALL-WR02400N
Código EAN: 4038816115058
Peso: 1kg
Garantía: 24 Meses
¿Preguntas sobre este artículo?

Destacados: Internet ultra rápido gracias al módem ADSL2+ integrado Novedad: soporta...más

Cerrar menú

Información del producto "ALLNET WR02400N Router-Modem WiFi ADSL2+ Anexo B/J"

Destacados:

Internet ultra rápido gracias al módem ADSL2+ integrado
Novedad: soporta Anexo B & J (funcionamiento sin splitter por ejemplo "Telekom Call & Surf IP"
Hasta 24 Mbps de velocidad de descarga para descargas ultra rápidas, IP-TV, gaming, etc. (dependiendo del proveedor)
Hasta 3,5Mbps de subida (con Anexo J activado)
última tecnología wireless N para transferencias de hasta 300 Mbit/s
Potente firewall SPI con protección DoS (Denial of Service), NAT integrado, filtro MAC y de paquetes, DMZ y mucho más

Con el ALL-WR02400N ALLNET trae el módem router al mercado, que es adecuado para ADSL2 + conexiones de banda ancha. No se necesita módem externo.

Al ser compatible con tecnología ADSL2 +,

se pueden aprovechar perfectamente las ventajas de velocidad de las modernas conexiones de alta velocidad y alcanzar velocidades de descarga de hasta 24Mbit/s según el proveedor. Además, el router también logra gracias a la última tecnología Wireless-N tasas de transferencia de hasta 300 Mbps y es perfecto para los juegos en línea, IPTV, vídeo HD y streaming de audio y voz sobre IP compatible. Las dos antenas que contiene garantizan una transmisión de largo alcance de la señal inalámbrica. Para garantizar una funcionalidad completa con la máxima flexibilidad, el router sigue contando con cuatro puertos LAN adicionales.

Además, el router cuenta con la última tecnología de encriptación WPA2, que permite una transmisión de datos segura dentro de la red. Gracias al fiewall SPI integrado con protección DoS, al NAT incorporado, a los filtros MAC y de paquetes, y a la DMZ se consigue la máxima seguridad, lo que promete proporcionar una seguridad adicional especialmente para el consumidor exigente.

La configuración del ALL-WR02400N puede realizarse de forma rápida y sencilla a través de la intuitiva interfaz web y, por tanto, puede administrarse en todos los sistemas operativos desde cualquier dispositivo. Con un consumo de energía de sólo 5 W, la combinación de router y módem es perfecta para un uso continuo. En la parte frontal de la unidad se encuentran los LED para la indicación visual del número de condiciones de funcionamiento.

Características técnicas:

Item	Specification
ADSL Profile:	Full-Rate ANSI T1.413 issue 2 ITU G.992.1 (G.DMT) Annex B ITU G.992.2 (G.Lite) Annex B ITU G.992.3 (Annex J) ITU G.992.3 (G. dmt.bis) Annex B ITU G.992.4 (G.lite.bis) Annex B ITU G.992.5 (ADSL2+) Annex B ITU G.994.1 (G.hs) Compatible with most Major DSLAM Equipments
ATM and PPP Features:	RFC2684 Bridge and Routed LLC&VC RFC2364 PPP over ATM ALL5 RFC2516 PPP over Ethernet FRC2225/RFC1577 Classical IP over ATM RFC1483 Transparent Bridge RFC1483/2684 Bridged Ethernet ATM Formum UNI 3.1/4.0, ATM Adaption Layer Type 5-AAL5 VPI Range (0-255) and VCI Range (32-665535) UBR, CBR, VBR-rt, VBR-nrt F4/F5 OAM Loopback AIS and RDI OAM cells Support 16 PVCs
Network Protocol:	Static IP, Dynamic RIPv1, RIPv2 support MTU Adjustment Network Adress Translation (NAT) PVC Port Mapping (Ethernet Ports) Port Forwarding NAT Application Level Gateway for Applications DHCP Server/Relay/Client DNS Relay Agent DMZ support DDNS support SNMP v1, v2 Support UPnP (Universal Plug and Play TR69 CWMP PPP Auto Reconnect and configurierbare timeouts PPP Auto Reconnect on WAN Acess/PPP on Demand IGMP v1/v2 snooping IGMP Multicast Support ALG für SIP und H.323
WLAN Standards:	IEEE 802.11b/g IEEE 802.11n
Modulation:	OFDM 1024/256/64/16/8 QAM, QPSK, BPSK and ROBO Modulation Scheme Wireless IEEE802.11n: BPSK, QPSK, QAM-16, QAM-64 IEEE802.11g: BPSK, QPSK, QAM-16, QAM-64 IEEE802.11b: CCK, QPSK, BPSK
Data rates:	IEEE 802.11b: 1, 2, 5.5 and 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: bis zu 300Mbps
Network Interface:	4x RJ45 10/100BaseT
WLAN Security:	64/128-Bit WEP WPA-PSK and TKIP/AES WPA2-PSK and TKIP/AES WPS via push Button Acess Control List Multi-SSID
Firewall:	Built-in NAT MAC Filtering & IP Filtering Parental Control Stateful Packet Inspection (SPI) Denial of Service Prevention (DoS) PAP/CHAP Authentication for PPP mode ALG (applicaction-level gateway) for NAT/PAT support
QoS:	Classification rules Priority Queuing 802.1p
Supported Operating Systems:	All network-capable operating systems (TCP/IP)
Configuration:	Web GUI Telnet or Command Line Interface via serial German Firmware Upgrade via FTP/HTTP Supports Remote Access Control Diagnostics Test
VPN Pass-Trough:	IPSEC/PPTP/L2TP Pass-trough
Power consumption:	5 Watt maximum
LED-Indicators:	1 x Power 4 x Ethernet 1 x Wireless on/off 1 x DSL (Sync) 1 x INET (Internet)
Controls on the device:	Dervice Button ON/OFF WLAN Button ON/OFF WPS Button
Housing:	Plastic housing
Dimension:	Height/Width/Depth: 95 x 110 x 27 mm Weight: 465 grams (only device)
Environment:	Temperature operating: 0 ~ 50 °C Humidity operating: 10% ~ 90% (non condensed) Temperature storage: -20 ~ 65 °C Humidity storage: 30% ~ 95% (non condensed)
Marks:	CE
Package content:	ALL-WR02400N Router incl. WLAN Antennas external Power Supply RJ11 -> RJ11 DSL Cable RJ45 -> RJ45 DSL Cable TAE-F -> RJ11 DSL Cable for Annex J (splitter-free operation) RJ45 Network Cable CD and manual

Enlaces externos a "ALLNET WR02400N Router-Modem WiFi ADSL2+ Anexo B/J"

Descargas disponibles:

Downloads

DISCLAIMER_OF_WARRANTY
This Program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; version 2 of the License.
This Program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this Program; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA.
The full text of the GNU General Public License version 2 is included with the software distribution in the file LICENSE.GPLv2

NO WARRANTY
BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Written Offer for Source Code
For binaries that you receive from ALLNET GmbH Computersysteme on physical media or within the download of the offered firmware that are licensed under any version of the GNU General Public License (GPL) or the GNU LGPL, you can receive a complete machine-readable copy of the source code by sending a written request to:
     ALLNET GmbH Computersysteme
     Maistrasse 2
     82110 Germering
Your request should include: (i) the name of the covered binary, (ii) the version number of the Allnet product containing the covered binary, (iii) your name, (iv) your company name (if applicable) and (v) your return mailing and email address (if available).
We may charge you a nominal fee to cover the cost of the media and distribution.
Your request must be sent within three (3) years of the date you received the GPL or LGPL covered code.
For your convenience, some or all of the source code may also be found at:
http://www.allnet.de/gpl.html

Dokumentation
	Dokumentation 24.11.2015	ALL-WR02400N Konfigurationshilfe für ADSL mit VLAN Tag Erforderlich für BNG-Anschluss der Telekom
	Dokumentation 26.05.2015	ALL-WR02400N Benutzerhandbuch (englisch)
	Dokumentation 26.05.2015	ALL-WR02400N Hilfestellung: RJ45-Port (LAN) als WAN-Port konfigurieren
	Dokumentation 26.05.2015	ALL-WR02400N WDS-Hilfestellung
	Dokumentation 26.05.2015	ALL-WR02400N Kurzanleitung (deutsch)
