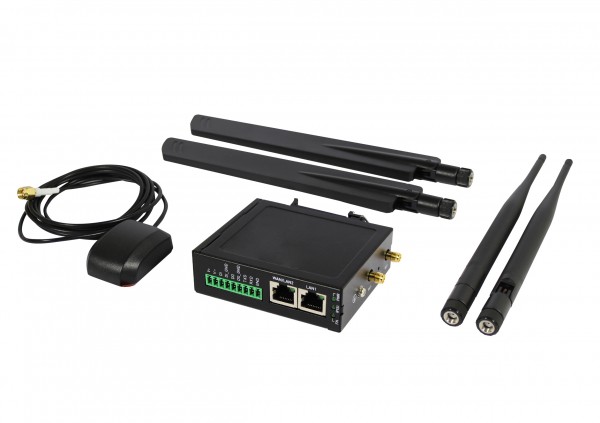

Vista preliminar: ALLNET ALL-RUT22GW Router compacto industrial 4G LTE

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

Downloads

declaración de conformidad

Instrucciones de instalación DE

Instrucciones de instalación ES

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 182958
Fabricantes: ALLNET
Número de artículo del fabricante: ALL-RUT22GW
Código EAN: 4038816182951
Peso: 1kg
Garantía: 24 Meses
¿Preguntas sobre este artículo?

Lo más destacado: 1 puerto LAN 10/100 Base-TX RJ45; 1 puerto WAN 10/100 Base-TX RJ45....más

Cerrar menú

Información del producto "ALLNET ALL-RUT22GW Router compacto industrial 4G LTE"

*No se incluye la fuente de alimentación** ver accesorios

El ALLNET ALL-RUT22GW es un router inalámbrico 4G LTE compacto, ligero y económico para su uso en entornos industriales con temperaturas elevadas. El router ALL-RUT22GW está equipado con dos puertos de red Fast Ethernet y utiliza redes móviles 2G, 3G y 4G para comunicaciones alámbricas e inalámbricas en entornos industriales. Equipado con un puerto serie RS232 e interfaces de entrada/salida digitales, el router es fácil de configurar y capta con gran rapidez las transmisiones de datos en tiempo real para aplicaciones industriales de IoT y de machine-to-machine.

Con el túnel VPN, Firewall, TR069 y SNMP trap, el ALL-RUT22GW admite la autenticación, el cifrado y la gestión de sus datos de forma altamente segura entre redes públicas y privadas. El router puede utilizarse de forma flexible en un rango de temperatura de -30 a +70°C aproximadamente y en un rango de tensión de entrada flexible de 8 a 48V en diferentes entornos y aplicaciones.

El router industrial ALL-RUT22GW es la opción perfecta para simplificar soluciones complejas y permite personalizar sus servicios para redes industriales y aplicaciones de Smart City.

Technical Details:

Cellular Interface

Standards: (Please see ordering information for optional band)

4G: FDD LTE, TDD LTE
3G: WCDMA
2G: GSM/EDGE

Bands	4G		3G	2G	REGION
Bands	FDD LTE	TDD LTE	WCDMA	GSM / EDGE	REGION
EU	B1(2100), B3(1800), B5(850), B7(2600), B8(900), B20(800)	B38(2600), B40(2300), B41(2500)	B1(2100), B5(850), B8(900)	B3(1800), B8(900)	Europe Africa Middle East Korea Thailand India

LTE Data Rate: CAT 4, 150Mbps (DL), 50Mbps (UL)

Hardware Interface

High Performance 550 MHz SoC with 128MByte Flash
1 x Micro SIM Connector (push-push type)
1 x LAN 10/100 Mbps Ethernet port
1 x WAN 10/100 Mbps Ethernet port
WPS / RESET Button
1 x RS-232 (TXD/RXD/GND)
1 x RS-485 (D+/D-/GND) (M330-W5 Model)
1 x DI (Non-Isolated), 1 x DO (Non-Isolated)
2 x SMA connectors for detachable LTE Antenna
2 x RP-SMA connectors for detachable Wi-Fi Antenna
1 x SMA connector for detachable GPS antenna

Wi-Fi Interface

Compliant with IEEE 802.11 b/g/n Wi-Fi standards
2.4 GHz radio band for wireless
2T2R 300 Mbps wireless operation rate
Wireless security with WPA2-PSK(AES)
Multiple SSIDs
Wireless MAC Filtering
Wireless client isolation

Physical Characteristics

Enclosure:Metal Case
Dimensions (W x H x D):91 x 28 x 74 mm
Weight:250 g (0.5512 lb)
Installation:DIN-rail / Wall mounting

LED Display

1 x Power LED
1 x Ethernet LED for each port (LAN/WAN)
1 x RSSI LTE LED
1 x Function LED (User define by Web)

Power Supply

Power Consumption 7 Watts(Max)
Power Input 8 ~ 48 VDC

Software

Network Protocols:

IPv4, IPv6, IPv4/IPv6 dual stack, DHCP server and client, PPPoE, Static IP, SNTP, GPS sync time, DNS Proxy,

VRRP, OSPF, Message Queue Telemetry Transport

(MQTT Broker), BGP, Flow (Modbus master ↔ MQTT client)

Routing/Firewall:

NAT, Virtual Server, DMZ, MAC Filter, URL Filter, IP Filter, VLAN, Static Routing and RIP-1/2, IPS, Policy Route

VPN:

OpenVPN, IPSec (3DES, AES128, AES196, AES256, MD5, SHA-1, SHA256), GRE, PPTP, L2TP

Wireless Connectivity:

WAN Wi-Fi Client

Others:

DDNS, QoS, UPnP, SMS Action, GPS Track Drawing, GPS TCP Push

Alarm:

DI, DO, SMS, VPN/WAN Disconnect, SNMP Trap, E-mail, TR069

Management Software

Web GUI for remote and local management, CLI
Syslog monitor
SNMP, TR069
FOTA (Firmware over the Air)
Remote management via SSH v2, HTTPS
Local management via Telnet, SSH v2, HTTP/HTTPS

Environment

Operating Temperature -30 ~ +70°C
Storage Temperature -40 ~ +85°C
Ambient Relative Humidity 10 ~ 95% (non-condensing)
Humidity 0 ~ 95% (non-condensing)

Standards and Certifications

EMC:CE, FCC
EMI:EN 301489 , FCC Part 15B Class B
EMS:EN 301489
Vibration:IEC60068-2-6
Radio : EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 300328, EN 303413, EN 62311
