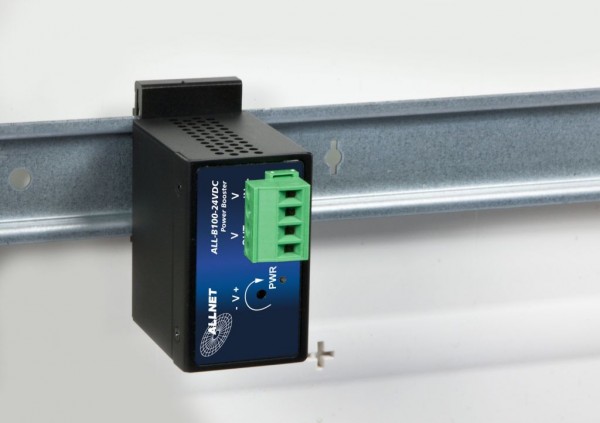

ALLNET ALL-B100-24VDC / Power-Booster 24VDC to 48~55VDC 90W
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 134034
- Fabricantes: ALLNET
- Número de artículo del fabricante: ALL-B100-24VDC
- Código EAN: 4038816058737
- Peso: 0.001kg
- Garantía: 24 Meses
- ¿Preguntas sobre este artículo?
Downloads
declaración de conformidad
Ficha ténica DE
Ficha técnica EN
EU RoHS und REACH Erklärung
Highlights:
- Hardened Industrial 95W Power Booster
- Boost Voltage from 24VDC to 55VDC to deliver 95Watts power to your PD
- Input voltage 24VDC
- Output Voltage 48VDC to 55VDC with voltage adjustable knob
- Operating temp: -40°C to +75°C
Introduction
This Rugged design 95 Watts Power Booster is a power device which boost 24VDC to 55VDC to power up your PD up to 95Watts. It is designed for environments where 48VDC is not available. This means that it can deliver 95Watts power in 24VDC environment. With all industrial graded components, this industrial power booster will guaranty a steady voltage output to your PD in a harsh environment. It is being rigorously tested for your Security, Transportation and Telco application.
Technical Details:
|
LED |
PWR: Green: |
|
Overload current protection |
Present |
|
Removable Terminal Block / Power Connector |
4 pin terminal block. |
|
Removable Terminal Block |
Wire range: 0.34mm^2 to 2.5mm^2 |
|
Voltage Adjustable Knob |
To adjust voltage output from 55VDC to 48VDC to meet your existing application |
|
Booster Power |
Maximum Booster power 95watts at 24VDC input |
|
Operating Temperature |
-40°~75° fully tested. |
|
Operating Humidity |
5% to 95% (Non-condensing) |
|
Storage Temperature |
-40°~85° C |
|
Housing |
Rugged Metal, IP30 Protection |
|
Case Dimension (L X W X D)mm |
59x36x49mm (LxWxD) |
|
Installation mounting |
DIN Rail mounting and Wall Mounting |
|
Certifications: |
|
|
Safety |
IEC EN60950-1 |
|
EMC/EMS |
CE, FCC, VCCI |
|
EMI |
FCC Part 15 Subpart B Class A, |
|
EN 50155 / EN 60068-2-6 |
Vibration |
|
EN 50155 / EN 60068-2-27 |
Shock |
|
EN 50155 / EN 60068-2-32 |
Free Fall |
