Synergy 21 LED office line suspension panel gray, dimmable
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 149505
- Fabricantes: Synergy 21 LED
- Número de artículo del fabricante: S21-LED-NB00282
- Código EAN: 4038816071774
- Peso: 5kg
- Garantía: 60 Meses
- ¿Preguntas sobre este artículo?
Downloads
Ficha ténica DE
Ficha técnica EN
Lichtberechnungsdatei
EU RoHS und REACH Erklärung

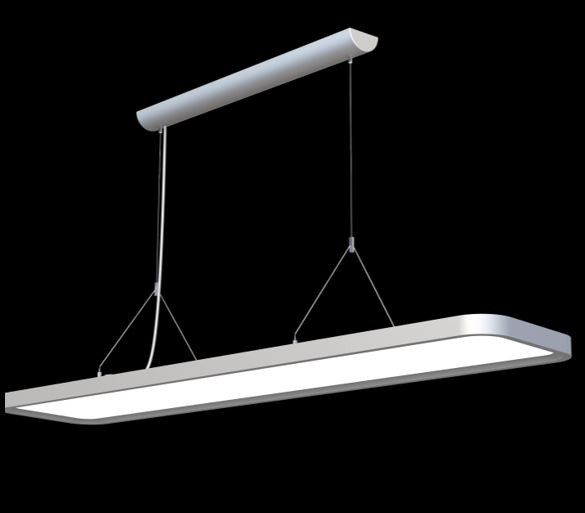

LED panel office line
Suitable for ceiling suspension (workplace lighting)
Frame colour: grey/silver RAL9006
Power consumption: 60Watt, 20W up, 40W down
Lumen output: 5750lm
Neutral white: 4100k ±150
Colour rendering: CRI >80
UGR: <19 with light downwards, no UGR upwards
Beam angle: 120° (total)
Operating temperature: -20° to +45°
Power supply: 100-240V
Power supply: built-in power supply, 0-10V dimmable
Size: 1200mm x 260mm x 30mm
Aluminium housing incl. ceiling mounting kit
Note: The LED cable with the black strip is connected
connected to the black "LED-" terminal of the power supply unit, the unmarked cable is plugged into the red "LED+" terminal.
Energy efficiency class: A++
kWh/1000h: 66
Produktmerkmale:
| CRI: | 80 |
| Clase de protección: | IP40 |
| Color de luz: | Blanco Neutro |
| Color de luz en Kelvin: | 4100 |
| LED - Color de la carcasa: | Gris |
| LED - Gehäuseform: | rechteckig |
| Lúmenes: | 5750 |
| Medidas: | 1200*260 |
| Regulable: | Sí |
| Ángulo de enfoque: | 120 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 66,00 |
| Lumen: | 5750 |
| Watt: | 60,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
