Synergy 21 LED Flex Strip 140 SWW DC24V 75W IP68 CRI>90 2835 super-ww
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 198487
- Fabricantes: Synergy 21 LED
- Número de artículo del fabricante: S21-LED-B220016
- Código EAN: 4038816198488
- Peso: 0.2kg
- Garantía: 60 Meses
- ¿Preguntas sobre este artículo?
Downloads
Synergy 21 LED Flex Strip 2835
2835 LED Chip
Length: 5m
Voltage: 24V
Watt: 15W/m, 75W
Light colour: super-warm white, 2500K, CRI>90
Colour shift towards 2700K possible due to IP68 protective jacket
Brightness: 1100lm/m Total: 5500lm
Beam angle: 120°
Protection class: IP68
Number of LEDs: 140*2835SMD/m, total: 700LEDs
Dimensions: 5000*13*3mm
Operating temperature: -25°C to +40°C
Can be shortened every 7 LEDs 50mm
Adhesive tape: yes 3M on the back
Energy efficiency class: A
kWh/1000h: 79.2
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.

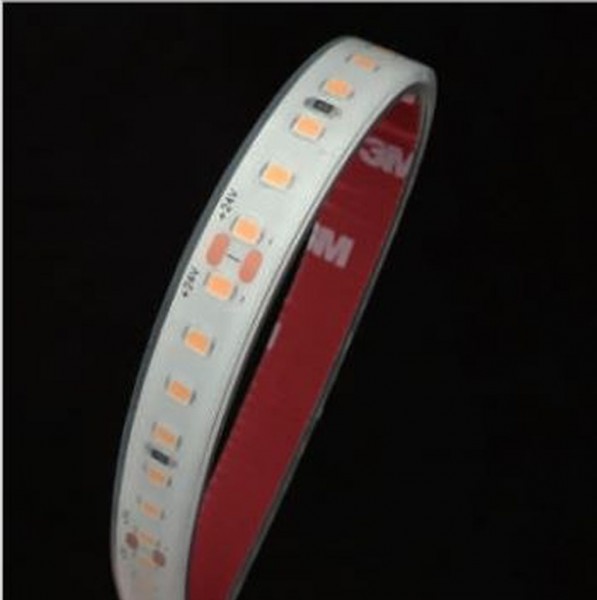

Fig. similar
Produktmerkmale:
| Altura Tira LED: | 3 |
| Amperio: | 3 |
| Ancho Tira LED: | 8 |
| CC oder CV: | CV |
| CRI: | >90 |
| Cinta adhesiva: | Sí |
| Clase de protección: | IP68 |
| Color de luz: | Blanco Cálido |
| Color de luz en Kelvin: | 2500 |
| LED Strip Chip Anzahl: | 140 |
| LED Strip Chip Typ: | 2835 |
| Largo Tira LED: | 5000 |
| Lúmenes: | 5975 |
| Regulable: | Sí, depende de la fuente de alimentación |
| Tira LED cortable: | 50 |
| Vatio: | 72 |
| Voltio: | 24 |
| Ángulo de enfoque: | 120 |
