4duino Relé ESP8266-UP IoT WLAN
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 148814
- Fabricantes: ALLNET
- Número de artículo del fabricante: ALL-ESP8266-IoT-Relais
- Código EAN: 4038816148810
- Peso: 0.3kg
- Garantía: 12 Meses
- ¿Preguntas sobre este artículo?
Downloads

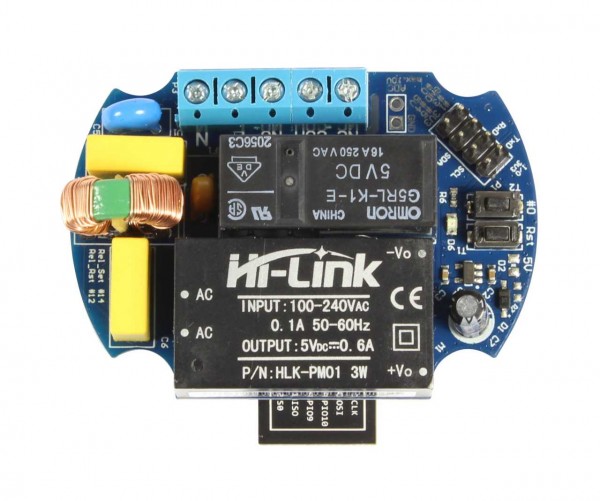

El relé ALLNET 4duino IoT WLAN UP es un módulo de relé oculto (UP), para principiantes, basado en el ESP8266, para conmutar cargas eléctricas / consumidores (250 VAC) hasta 16A (NO) a través de un relé de calidad biestable de Omron (G5RL- (G5RL-K1-E).
Se puede controlar a través de enlaces HTTP, p. para Amazon Alexa o similar
Detalles del Relé:
Omron (G5RL-K1-E)
250 VCA a 16 A (estándar abierto) / 5 A (estándar cerrado)
biestable (es decir, consumido solo en caso de un cambio de estado actual)
Funciones de la interfaz web:
1. Acción aleatoria: Enciende o apaga el relé con un 50% de probabilidad
2. Intervalos: las siguientes acciones son posibles en una ventana de tiempo definida:
2.1 Off-On-Intervalo, ambas veces en minutos con estado fijo Apagado o Encendido al final del tiempo
2.2 Intervalo de encendido-apagado, ambas veces en minutos con estado fijo Apagado o Encendido al final del tiempo
2.3 Invertir-Invertir Intervalo, ambas veces en minutos con el estado inalterado al final del tiempo
3. Los intervalos y acciones se pueden mezclar como se desee, un total de 50 piezas (aproximadamente 200 es el límite técnicamente factible)
4. Mientras se está ejecutando un intervalo, no se realiza ningún otro intervalo o acción
5. El intervalo activo se muestra en la interfaz web y puede cancelar manualmente el intervalo
!!! Atención: ¡para flashear con software propio se necesita un programador externo con 3.3V!
Ref.fabricante: ALL-A-40 (B92)
Artículo no disponible en la cantidad deseada, tiempo de entrega bajo pedido
Downloads
This Program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; version 2 of the License.
This Program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this Program; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA.
The full text of the GNU General Public License version 2 is included with the software distribution in the file LICENSE.GPLv2
NO WARRANTY
BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
For binaries that you receive from ALLNET GmbH Computersysteme on physical media or within the download of the offered firmware that are licensed under any version of the GNU General Public License (GPL) or the GNU LGPL, you can receive a complete machine-readable copy of the source code by sending a written request to:
ALLNET GmbH Computersysteme
Maistrasse 2
82110 Germering
Your request should include: (i) the name of the covered binary, (ii) the version number of the Allnet product containing the covered binary, (iii) your name, (iv) your company name (if applicable) and (v) your return mailing and email address (if available).
We may charge you a nominal fee to cover the cost of the media and distribution.
Your request must be sent within three (3) years of the date you received the GPL or LGPL covered code.
For your convenience, some or all of the source code may also be found at:
http://www.allnet.de/gpl.html
Dokumentation | |||
![]() |
Dokumentation 09.01.2019 |
ALL-ESP8266-IoT-Relais Benutzerhandbuch (englisch) |
![]() |
![]() |
Dokumentation 09.01.2019 |
ALL-ESP8266-IoT-Relais Benutzerhandbuch (deutsch) |
![]() |
