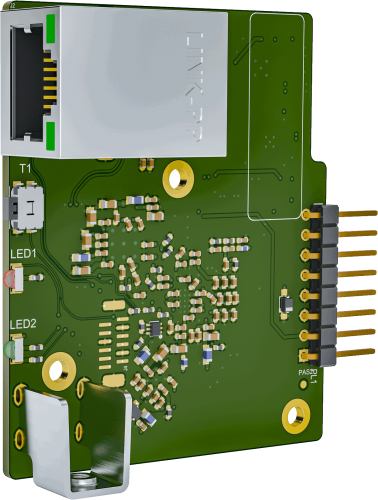

ALLNET Point-to-Point Coax 8 Port Master Chassis/Amplifier EOC 200 zbh. EOC G.hn module for chassis 100MHz "ALL-GHN108M-Coax-200"

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Artículo no disponible en la cantidad deseada, tiempo de entrega bajo pedido

Llámenos Escríbanos

Downloads

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 221625
Fabricantes: ALLNET
Número de artículo del fabricante: ALL-GHN108-200-Modul
Peso: 1kg
Garantía: 24 Meses
¿Preguntas sobre este artículo?

Highlights: Frequency range: 2 - 199 MHz Network standard: G.hn Hardware encryption:...más

Cerrar menú

Información del producto "ALLNET Point-to-Point Coax 8 Port Master Chassis/Amplifier EOC 200 zbh. EOC G.hn module for chassis 100MHz "ALL-GHN108M-Coax-200""

Highlights:

Frequency range: 2 - 199 MHz
Network standard: G.hn
Hardware encryption: AES 128-bit
Quality of Service: VLAN/TOS/Packet Classifier/
Gross data rate: 2000 Mbps max.
Net data rate: 1700 Mbps max.
incl. power supply for the optional EOC sockets 200MHz
max. EOC sockets can be operated per module in the chassis

The G.hn module is used to extend an existing AMP ALL-GHN108-200 distribution amplifier in conjunction with EOC 200 flush-mounted boxes. Up to eight G.hn modules can be installed per distribution amplifier. Only G.hn modules of the same type (200MHz) can be installed per distribution amplifier.

The G.hn plug-in module enables an additional coaxial line to be integrated, which is available in the line with EOC 100MHz flush-mounted sockets for picking up network data and/or DVB-C signals. This is also known as DVB-C coexistence.

ATTENTION:

This is only the 200MHz g.hn module, the chassis/amplifier Art. 221624 is also required. see accessories
