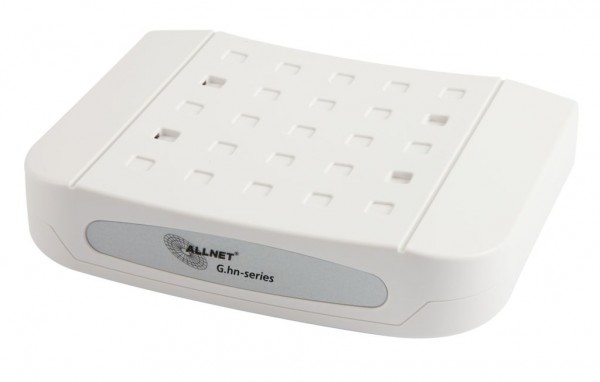

ALLNET ALL-GHN102v2-Coax Bridge for Coax-Connections
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 123043
- Fabricantes: ALLNET
- Número de artículo del fabricante: ALL-GHN102v2-Coax
- Código EAN: 4038816051400
- Peso: 0.42kg
- Garantía: 24 Meses
- ¿Preguntas sobre este artículo?
Downloads
declaración de conformidad
Ficha ténica DE
Ficha técnica EN
Ficha técnica ES
Ficha técnica FR
Manual
Manual EN
EU RoHS und REACH Erklärung
Highlights:
- up to 500 Mbps G.hn Port as Homenetwork-Backbone over TV-Wirering
- Two 100 / 1000Mbps Gigabit Ethernet Ports for Ethernet-Terminals (PC, Set-Top-Box, TV, WiFi-AP´s or other Ethernet-Devices with RJ45-Ethernetport...)
- Energyefficiency (green) Ethernet-Support
- Filter Built-in to Eliminate Noise from TV Signal Indication
- 6MHZ - 76MHz
- QoS Priority Mapping Support
- Tag VLAN Configuration
- IGMP Snooping Control
- Status and Statistic
- up to 15 devices possible
With the G.HN Gigabit Ethernet Bridge ALL-GHN102v2-Coax, you can, with the existing TV cabling, expand your home network at home. There is no additional network wiring required. You can simply use the existing coax wiring in the wall. With the ALL-GHN102v2-Coax they can as quickly expand your network without rewiring and with little effort.
|
Element |
Specification |
|
Network Standard: |
ITU G.9960 G.hn over Coaxial Cable Baseband IEEE 802.3u 100M Fast Ethernet IEEE802.3ab 1000M Gigabit Ethernet IEEE 802.3az Energy Efficiency Ethernet |
|
Connectors: |
Ethernet : Two RJ-45 Connectors G.hn: Two F-Type Female Coax Connectors, One for G.hn, the Other for TV |
|
G.hn Interface |
Transmission power and spectrum AES 128 Encryption |
|
Gigabit Ethernet Interface |
100/1000Mbps Auto Negotiation MDI/MDI-X Auto Crossover |
|
Quality of Service |
Priority Mapping Based on IEEE 802.1p Guaranteed G.hn Parameterized QoS |
|
Management |
IPv4 and IPv6 Support Queuing Scheme Based on 802.1p/TOS TagVLAN ID Tag/UnTag or Pass Through GMP Snooping Control Statistic and Status |
|
LED-Display: |
“Power” LED G.hn “Link/Activity/Quality” LED Ethernet “Link/Activity” LED x 2 |
|
Environmental Conditions: |
Operating Temperature : 0° ~ 50° (32° ~ 120°) Storage Temperature –10° ~ 65° (14° ~ 149°) Operating Humidity : 10% ~ 95%, Non-condensing |
|
Power Consumption: |
4W on 12 Volt |
|
Physical Dimension: |
130mm (W) x 95mm (D) x 32mm (H) |
|
Marks |
CE |
