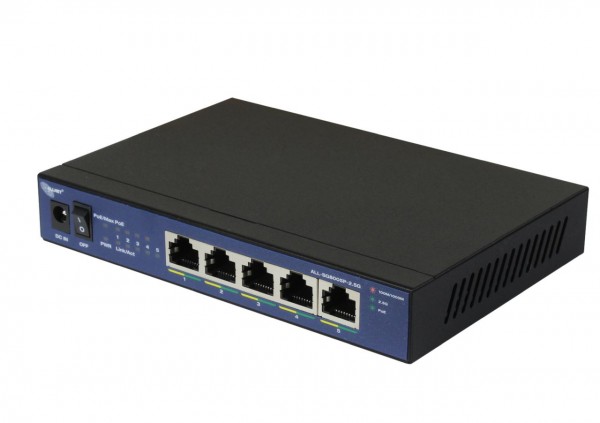

ALLNET Switch unmanaged 5 Port 2.5GBit • 5x PoE • 1x LAN • Fanless • "ALL-SG8005P-2.5G"

Vista preliminar: ALLNET Switch unmanaged 5 Port 2.5GBit • 5x PoE • 1x LAN • Fanless • "ALL-SG8005P-2.5G"

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

Downloads

declaración de conformidad

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 201875
Fabricantes: ALLNET
Número de artículo del fabricante: ALL-SG8005P-2.5G
Código EAN: 4038816108517
Peso: 1kg
Garantía: 24 Meses
¿Preguntas sobre este artículo?

ALLNET Switch unmanaged 5 Port 2.5GBit • 5x PoE • 1x LAN • Fanless • "ALL-SG8005P-2.5G"...más

Cerrar menú

Información del producto "ALLNET Switch unmanaged 5 Port 2.5GBit • 5x PoE • 1x LAN • Fanless • "ALL-SG8005P-2.5G""

ALLNET Switch unmanaged 5 Port 2.5GBit • 5x PoE • 1x LAN • Fanless • "ALL-SG8005P-2.5G"

Highlights:

Five multi Gigabit ports support up to 2.5 Gigabit 4X speed (10M/100M/1G/2.5G).
5x ports multi-PoE compliant with IEEE802.3af or IEEE802.3at
Increase network speed to 2.5x without additional cabling costs.
Plug-and-play, no complex installation.
Fanless design ensures absolutely silent operation.
Flexible mounting options for placing the 2.5G switch in your environment
ON/OFF button on the front panel
Supports IEEE802.1x flow control
Supports Jumbo Frame: 12K bytes
Backward compatible with 10Mbit/100Mbit and 1Gbit

The ALL-SG8005P-2.5G 2.5 Gigabit Switch is the perfect candidate if you want to expand the speed and performance of your network. It is up to 2.5 times faster than today's gigabit networks. As an out-of-the-box network speed upgrade, the ALL-SG8005P-2.5G is an optimal solution for home or small office users who need more bandwidth for their network, such as online gaming, multimedia streaming services, or faster wireless network connections, without the need for complex configuration.

Mechanical Details:

Technical Details:

Items	Specifications
Model No.	ALL-SG8005P-2.5G"
Key Components	Realtek RTL8371+RTL8221Bx5 IC+ IP804AR PoE PSE Controller
I/O ports	5 x 2.5Gigabit Ethernet Ports, RJ45
PoE ports	Port# 1~ 4 IEEE802.3at, IEEE802.3af
LED Define	Power: Green LED Off: power off or fail On: power on Blinking: system booting up PoE Alert: Green LED Off: No over PoE max power budget (50W) On: Over PoE max power budget (50W) RJ 45 Port: LINK/ACT: bio-color LED Off: port disconnected or link fail Green on: 2.5Mbps connected Amber on: 10/100/1000Mbps connected Blinking: sending or receiving data PoE: Off: PoE power output off Green on: PoE power output on
HW feature	IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3bz 2.5G BASE-T IEEE802.3az EEE IEEE802.1x Flow control MAC address Table: 16K Packet buffer size: 12Mbit Jumbo Frame: 12K bytes Forwarding Rate: 18.6pps (64-byte)
PoE power pin-out	Alternative A (Pin 1,2/3,6)
PoE power budget	Alert: 50W Budget: 55W
PoE Output power capacity	Maximum output :30W per each port Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+ Automatically discover the connection of PD device and immediately sends power to it Auto disable port if the port current is over 700mA or short happens Priority default setting is lower port NO. has high priority The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value. Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable
Power Input	AC-to-DC external power adapter Input: 100-240V AC Output: 55V DC/1.3A
Dimension	160 x 110 x 26 mm
FAN Design	Fanless
Temperature	Operating: 0 ~ 40°C Storage : -40 ~ 70°C
Humidity	Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 90% RH (non-condensing)

Produktmerkmale:

Anzahl Ports PoE/LAN:	4/1
Belüftung Switch:	Lüfterlos
Einsatzort Switch:	Desktop
Gestión:	no gestionable
LAN Geschwindigkeit:	2,5GBit/s
PoE Port Leistung:	30W at
