Información del producto "ALLNET Switch industrial unmanaged Layer2 6 Port GbE • 4x GbE • 2x SFP • Fanless • IP40 • ALL-SGI8104v2"

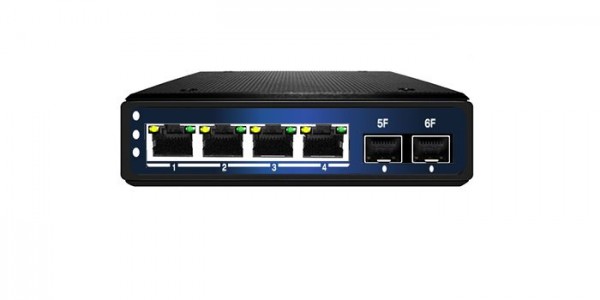

ALLNET Switch industrial unmanaged Layer2 6 Port GbE • 4x GbE • 2x SFP • Fanless • IP40 • ALL-SGI8104v2

Highlights:

4 Gigabit ports
2 SFP ports
Fanless metal housing with optimized heat dissipation
Easy to use as desktop, wall-mount or DIN rail device
Extended temperature range from -40° ~ +80°.
IP40 RATING

ALLNET ALL-SGI8104v2 Industrial Switch is an unmanaged Gigabit Ethernet Switch that features

4-Port Gigabit RJ45 + 2-Port Gigabit SFP optical port, which is equipped with an IP40-rated rugged but compact-size case for stable operation in heavy industrial demanding environments. Being able to operate under the temperature ranging from -40? to +75?. It provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.

Technical Details:

Model	ALL-SGI8104v2
Copper Ports	4-10/100/1000BASE-T RJ45 auto-sensing ports
Fiber Ports	2-1000BASE-T uplink SFP fiber slot ports
Switch Architecture	Store-and-Forward
Switch Fabric	12Gbps/non-blocking
Throughput	8.928Mpps @64 bytes
Share Data Buffer	2 Mb
Jumbo Frame	9216 Bytes
Flash Memory	8Mb
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Reset Button	>2 sec.: Factory default and reset
Power Supply	12V~57V DC, 50/60Hz,Dual DC
LED Indicators	Power: Green Solid on- power work normal, off- power disconnected System: Green Blink-work normally, solid on- soft work abnormal, fast blink- soft upgrade 10/100/1000T RJ45 Interfaces (Port 1 to Port 4): 1000 LNK/ACT (Green), 10/100 LNK/ACT (yellow) Blink- port connected with data transmission; Solid on- port connected without data transmission 1000Mbps SFP Interfaces (Port 5 to Port 6): Green Blink- port connected with data transmission; Solid on- port connected without data transmission
DIP Switch	DIP switches for operating modes: VLAN - Isolation of the main ports. Can exchange data only with SFP uplinks; 250m - on / off data transfer (10Mbps) in 250m 100 SFP - enable / disable the 100M speed of SFP ports
EMC	Surge Immunity:6KV Per: IEC61000-4-5 ESD Protection: ESD Level 4 Per: IEC61000-4-2;EFT Level 4 Per: IEC61000-4-4
Dimension	118.510030mm
Weight	0.35kg
Working Temperature	-40°C to 75°C
Storage Temperature	'40? to 80 ?
MTBF	50,000hrs

Produktmerkmale:

Anzahl Ports PoE/LAN:	0/4
Belüftung Switch:	Lüfterlos
Einsatzort Switch:	Industrial DIN
Extra Features:	IP40
Gestión:	no gestionable
LAN Geschwindigkeit:	1Gbit/S
SFP Geschwindigkeit:	SFP 1GBit
SFP Port Anzahl:	2
