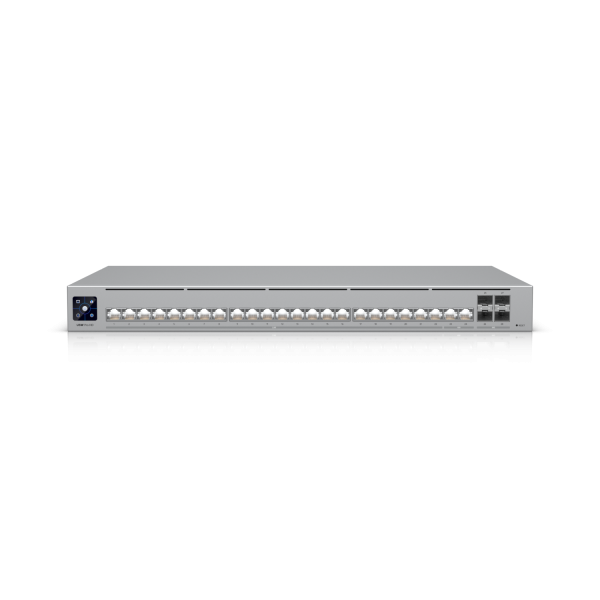

Ubiquiti Switch full managed Layer3 28 Port Â• 22x 2,5 GbE Â• 2x 10 GbE Â• 4x SFP+ Â• 19" Â• UniFi Â• USW-Pro-HD-24

Vista preliminar: Ubiquiti Switch full managed Layer3 28 Port Â• 22x 2,5 GbE Â• 2x 10 GbE Â• 4x SFP+ Â• 19" Â• UniFi Â• USW-Pro-HD-24

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 239783
Fabricantes: Ubiquiti
Número de artículo del fabricante: USW-Pro-HD-24
Peso: 4.3kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

Professional Layer 3 Etherlighting switch with (2) 10 GbE, (22) 2.5 GbE and (4) 10G SFP+ ports....más

Cerrar menú

Información del producto "Ubiquiti Switch full managed Layer3 28 Port Â• 22x 2,5 GbE Â• 2x 10 GbE Â• 4x SFP+ Â• 19" Â• UniFi Â• USW-Pro-HD-24"

Professional Layer 3 Etherlighting switch with (2) 10 GbE, (22) 2.5 GbE and (4) 10G SFP+ ports.

Highlights:

Etherlighting ports that light up to indicate port location, speed/connection and native VLAN/network*
(22) 2.5 GbE, (2) 10 GbE ports
(4) 10G SFP+ ports
Ready for DC emergency power supply**

_{*Couple with UniFi Etherlighting patch cables for optimal brightness.

**Requires UniFi RPS}

_{Technical data:}

Mechanical
Dimensions	442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7 inches)
Weight	Without mounting brackets: 4.2 kg (9.2 lb) With mounting brackets: 4.3 kg (9.4 lb)
Walking material	SGCC steel
Hardware
Management interface	Ethernet in-band
Network interface	(2) 10/5/2.5/1 GbE, 100 MbE RJ45 ports (22) 2.5/1 GbE, 100/10 MbE RJ45 ports (4) 10/1G SFP+ ports
Total non-blocking throughput	115 Gbit/s
Switching power	230 Gbit/s
Forwarding tariff	171.12 Mpps
Performance method	(1) Universal input, 100240 V AC, 50/60 Hz (1) USP-RPS DC input
Power supply	AC/DC, internal, 60 W
Supported voltage range	100240 V alternating current
Max. Power consumption	50 W
LCM display	(1) 1.3-inch touch screen
Button	Factory reset
Operating ambient temperature	-5 to 40 °C (23 to 104 °F)
Humidity during operation	10 to 90 % non-condensing
Certifications	CE, FCC, IC
Switching functions
Layer 2 functions	IGMP snooping STP/RSTP with prioritisation and deactivation at port level Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast/broadcast rate limiting Blocking of MAC addresses Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping/guarding Output rate limiting LLDP-MED Port restricted by MAC Device isolation with ACLs QoS Per AV
Layer 3 functions	DHCP for locally managed networks DHCP relay Inter-VLAN routing between networks on the same switch Static routing between local networks Network isolation with ACLs
Etherlighting
Ethernet	Speed/connection localise Native VLAN/Network
SFP+	Speed/connection localise Native VLAN/Network
LEDs
System	Status
RPS	Status
Application requirements
UniFi network	Version 8.6.9 and higher
