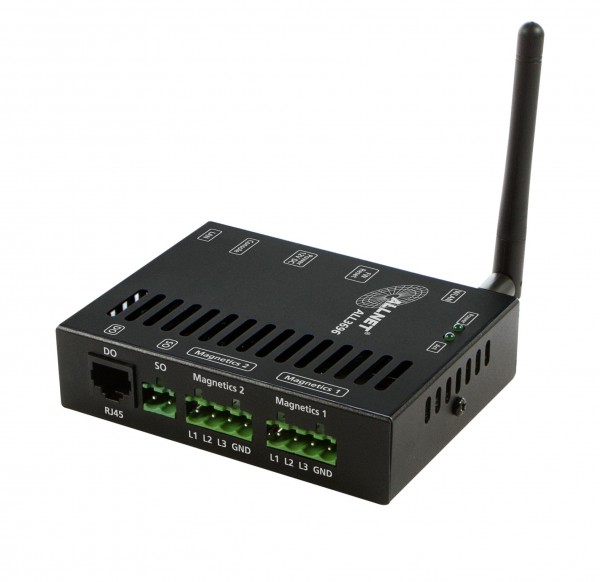

ALLNET ALL3696 Powermeter IP con 2x inducción
Los precios no incluyen IVA ni gastos de transporte
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
- Stock: 0
- Nº de artículo 118725
- Fabricantes: ALLNET
- Número de artículo del fabricante: ALL3696
- Código EAN: 4038816118721
- Peso: 1kg
- Garantía: 24 Meses
- ¿Preguntas sobre este artículo?
Downloads










-
Conozca que está pasando
-
Accesible vía Wifi
-
Análisis del consumo y suministro de energía
-
Registro de valores de medición con sensores
-
Ahorro de electricidad
ALLNET ALL3696 es el resultado de la evolución de la exitosa serie de powermeter ALL369x. Ahora con interfaz para medición óptica D0. Esto ayuda a recibir valores de medición concretos y calibrados.
- Dispositivo de medición para capturar y controlar su consumo de energía con varios puntos de medición.
- Disponible en todas partes a través de Internet (necesaria una conexión a internet en el lugar donde se encuentre el ALL3696).
- Sencillo manejo e instalación a través de la interfaz web y el cabezal óptico de lectura ALL3688, o alternativamente ALL3689 .
- Servidor web integrado.
- Alarma por correo electrónico si se superan los valores ajustados.
- 4x D0 que permiten la conexión con cada medidor de potencia D0 con salida óptica (ALL3688/ALL3689)
- Amplia visualización del consumo con diagrama en vivo, función de gráfica y representación de tablas.
- Posibilidad de descargar los valores de medición, por ejemplo, como datos CSV.
- Interfaces: 1x network, 1x 300Mbit Wifi, 4x D0, 2x sensore I2C, 2x USB externos
Datos técnicos:
Elemento |
Especificaciones |
Interfaces: |
2x conexiones magnéticas para transductores inductivos 1x50A (incluidas, opcionales 50A / 200A y 800A disponibles |
Memoria de datos interna: |
Stick 4GB USB memoria flash |
Cnexiones de red |
1x RJ45 10/100Mbps |
Protocolos de red |
HTTP/HTTPS, TCP/IP, SNTP, SMTP, SSH |
Sistemas operativos |
Todos los compatibles con la red con navegador |
Fuente de alimentación |
100~240 VAC, 50/60 Hz, fuente de alimentación externa 12V 1A |
Consumo de energía |
<3 w máximo |
Carcasa: |
Aluminio, posibilidad de montaje en pared |
Ambiental: |
Rango de temperatura: 0 ~ 40 °C |
Certificaciones: |
CE, RoHS |
Dimensiones: |
155 x 28 x 26 mm (largo x ancho x alto) |
Peso: |
260 gramos (sin accesorios y embalaje) |
Contenido: |
1x ALL3696 |
Ref.fabricante: ALL369x-A200
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
Ref.fabricante: ALL369x-A050
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
Ref.fabricante: ALL369x-A800
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
Ref.fabricante: ALL3689
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
Ref.fabricante: ALL3688
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
Ref.fabricante: ALL-PS102G-AF-AT
Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables
