ALLNET ALL-SG8208M Switch 8x 10/100/1000Mbit sin ventilador

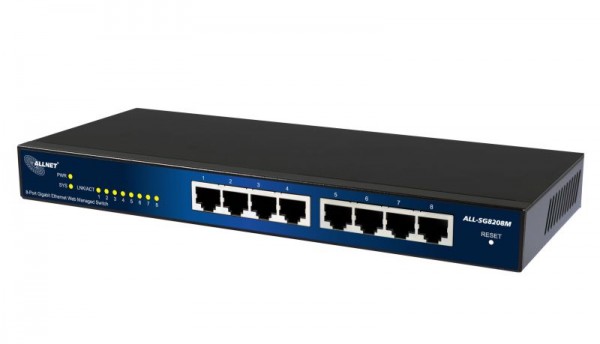

Vista preliminar: ALLNET ALL-SG8208M Switch 8x 10/100/1000Mbit sin ventilador

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

Downloads

declaración de conformidad

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 112533
Fabricantes: ALLNET
Número de artículo del fabricante: ALL-SG8208M
Código EAN: 4038816026743
Peso: 1kg
Garantía: 24 Meses
¿Preguntas sobre este artículo?

Swicht inteligente con gestión web, nivel 2 con 8x 10/100/1000Mbit Pequeño y compacto,...más

Cerrar menú

Información del producto "ALLNET ALL-SG8208M Switch 8x 10/100/1000Mbit sin ventilador"

Swicht inteligente con gestión web, nivel 2 con 8x 10/100/1000Mbit

Pequeño y compacto, pero extremadamente poderoso! El nuevo ALL-SG8208M es perfecto para grupos de trabajo ya que ofrece una transmisión de datos de forma rápida. Con un total de 8 puertos de 10/100/1000Mbit este producto es una excelente conexión a servidores, y ordenadores.

El Switch se puede configurar de forma rápida y fácilmente a través de la web de gestión integrada. Se puede gestionar para cada puerto por separado, la velocidad, el modo dúplex así como las opciones VLAN Trucking. Con la duplicación de puertos, puede supervisar un puerto aleatoriamente, por ejemplo para crear trazas.

Para conectar sus dispositivos con QoS, tales como por ejemplo teléfonos de Voz sobre IP, el switch tiene una opción de calidad de servicio, lo que permite lograr siempre una calidad de datos óptima para su dispositivo.

El Switch es compatible con el estándar IEEE 802.3x y opera en el nivel 2. Tiene una memoria MAC de 8k, para asegurar un alto rendimiento en la red.

Datos técnicos:

Elementos	Especificaciones
Modo:	Nivel 2, pequeño, Store and Foreward, Auto-Negotiation
Tipo:	standalone
Puertos:	8x RJ45 10/100/1000BaseT(X)
Uplink:	Disponible en todos los puertos (Auto MDI/MDI-X)
Apilable:	Uplink
Modo Full Duplex:	Si
Rendimientos de datos:	La velocidad de conducción
Memoria Buffer:	524,8K Bytes
Jumbo Frame:	10K Bytes
Capacidad	16Gbps
Gestión de direcciones:	Autoaprendizaje
Tabla de direcciones MAC:	8K
Filtering/Forwarding:	La velocidad de conducción
Indicadores LED:	Power Link Activity
Alimentación:	Externa
Protocolos soportados:	IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE802.ab 1000BaseT IEEE802.1az Energy Efficient Enternet IEEE802.1p class of service, priority protocols
Funciones Nivel 2:	Flow Control (Full-Duplex & Half-Duplex) Spanning Tree (IEEE802.1d STP & IEEE802.1w RSTP, Auto Edge Port, Self Loop Detection) VLAN (64 Statis VLAN, Port-based, IEEE802.1q Tagged-based) Voice VLAN (OUI Mode) Link Aggregation (IEEE802.3ad LACP, Static Trunk, 8x max Gruppen, 8 Ports/Gruppen, Traffic Load Balancing) IGMP Snooping (256 Multicast Gruppen, IGMP v1/v2/v3 IEEE802.1ab Link Layer Discovery Protokoll (LLDP)
QoS:	8 Priority Queue Rate Limit (Port Based Ingress/Egress) Queue Scheduling (WRR, WFQ, Strict Priority, Hybrid) Class of Service (Port-based, Flow-based, 802.1p, IP Tos, IP DSCP)
Securidad:	Storm Control (Broadcast, Unknown Multicast, Unknown Unicast) HTTPS und SSL 2.0 Account Manager (Multiple Account, Multi-Level Security) Management VLAN, Port-Isolation DoS Prevention
IPv6:	IPv6 Application (HTTP/HTTPS, TELNET, SNMP, TFTP, PING, PHCPv6) IPv6 Host (Static Adress Length, Default Gateway, Neighbor Discovery (ND), Duplicate Adress Detection, ICMPv6)
Gestionable:	Web-GUI (HTTP,HTTPS) Command Line Interface CLI ( Console, RFC854) SNMP (v1/v2c) File Managment (Firmware Upgrade, Configuration Download DHCP Client DNS Client Mirroring (Port-based "many to one") Syslog (RFC3164, LocalRAM, Local Flash, Remote Server) Time Setting (Local, SNTP) Cable Diagnostics (Cable Test) Port Utiliation Reset Button EEE (802.3az)
Carcasa:	Metal, montaje en sobremesa
Dimensiones:	Ancho/Hondo/Alto: 250 x 104 x 27 mm
Datos ambientales:	Temperatura de funcionamiento: 0 ~ 55 °C Humedad de funcionamiento: 10% ~ 90% Temperatura de almacenamiento: -20 ~ 90 °C Humedad de almacenamiento: 5% ~ 90%
Certificaciones:	EMC/FCC, CE Class B; Safety/LVD EN60950-1

Produktmerkmale:

Anzahl Ports PoE/LAN:	0/8
Belüftung Switch:	Lüfterlos
Einsatzort Switch:	Desktop
Gestión:	smart managed (WebGui)
LAN Geschwindigkeit:	1Gbit/S
