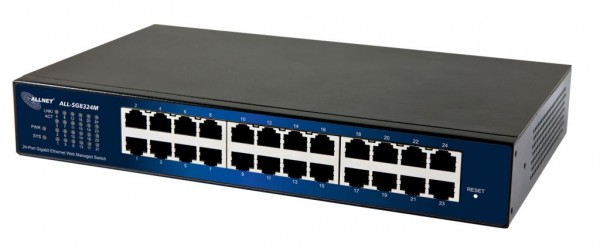

ALLNET ALL-SG8324M Switch 24x 10/100/1000Mbit sin ventilador

Vista preliminar: ALLNET ALL-SG8324M Switch 24x 10/100/1000Mbit sin ventilador

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

Downloads

declaración de conformidad

Ficha ténica DE

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 113771
Fabricantes: ALLNET
Número de artículo del fabricante: ALL-SG8324M
Código EAN: 4038816113771
Peso: 2.4kg
Garantía: 24 Meses
¿Preguntas sobre este artículo?

Switch de 24x 10/100/1000Mbit de nivel 2 para sobremesa y rack de 19" sin ventilador A...más

Cerrar menú

Información del producto "ALLNET ALL-SG8324M Switch 24x 10/100/1000Mbit sin ventilador"

Switch de 24x 10/100/1000Mbit de nivel 2 para sobremesa y rack de 19" sin ventilador

A destacar:

24x 10/100/1000Mbit
Soporta el procotolo NWay para velocidad (10/100/1000Mbit) y el módulo (hall/full) auto-detectionn
Soporta back-pressure (half duplex), flow control (IEEE 802.3x und IEEE 802.3az Energy Efficient Ethernet
VLAN "64 Static / Port-Based / Tagged Based
Link Aggregation ( IEEE802.3ad LACP & Static Trunk)
IGMP Snooping (v1/v2/v3)
QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP)
Stormcontrol (Broadcast, Multicast, Unicast)

El nuevo ALL-SG8324M es perfecto para grupos de trabajo ya que ofrece una transmisión de datos de forma rápida. Con un total de 24 puertos de 10/100/1000Mbit este producto es una excelente conexión a servidores, y otros dispositivos conectados.

Gracias a su diseño sin ventilador, el ALLNET ALL-SG8324M es ideal para oficinas, ya que no emite ningún tipo de ruido. El interruptor es inteligente manejable y por lo tanto con todos los estándares necesarios, tales como QoS, VLAN, control de tormentas, snooping IGMP, etc. Esto asegura el máximo rendimiento y la seguridad de su red.

La carcasa de metal lo hacen ideal tanto para ser montado en pared como en rack de 19".

Datos técnicos:

Elementos	Especificaciones
Modo:	Nivel 2, pequeño, Store and Foreward, Auto-Negotiation
Tipo:	standalone
Puertos:	24x RJ45 10/100/1000BaseT(X)
Slots de expansión:	No
Uplink:	Disponible en todos los puertos (Auto MDI/MDI-X)
Apilable:	Uplink
Modo Full Duplex:	Si
Rendimientos de datos:	La velocidad de conducción
Memoria Buffer:	524,8K Bytes
Jumbo Frame:	10K Bytes
Capacidad:	32Gbps
Gestión de direcciones:	Autoaprendizaje
Tabla de direcciones MAC:	8000
Filtering/Forwarding:	La velocidad de conducción
Indicadores LED:	Power Link Activity
Alimentación:	100 - 240V AC, interna
Consumo:	15W máximo
Protocolos soportados:	IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE802.ab 1000BaseT IEEE802.3ad Link Aggregation IEEE802.1ab Link Discovery Protocol (LLDP) IEEE802.3x full-duplex operation and flow control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p class of service, priority protocols IEEE802.1Q VLAN Tagged Based IEEE802.1d Spanning Tree (STP) IEEE802.1w Spanning Tree (RSTP)
Funciones Nivel 2:	Flow Control (Full-Duplex & Half-Duplex) Spanning Tree (IEEE802.1d STP & IEEE802.1w RSTP, Auto Edge Port, Self Loop Detection) VLAN (64 Statis VLAN, Port-based, IEEE802.1q Tagged-based) Voice VLAN (OUI Mode) Link Aggregation (IEEE802.3ad LACP, Static Trunk, 8x max Gruppen, 8 Ports/Gruppen, Traffic Load Balancing) IGMP Snooping (256 Multicast Gruppen, IGMP v1/v2/v3 IEEE802.1ab Link Layer Discovery Protokoll (LLDP)
QoS:	8 Priority Queue Rate Limit (Port Based Ingress/Egress) Queue Scheduling (WRR, WFQ, Strict Priority, Hybrid) Class of Service (Port-based, Flow-based, 802.1p, IP Tos, IP DSCP)
Seguridad:	Storm Control (Broadcast, Unknown Multicast, Unknown Unicast) HTTPS und SSL 2.0 Account Manager (Multiple Account, Multi-Level Security) Management VLAN, Port-Isolation DoS Prevention
IPv6:	IPv6 Application (HTTP/HTTPS, TELNET, SNMP, TFTP, PING, PHCPv6) IPv6 Host (Static Adress Length, Default Gateway, Neighbor Discovery (ND), Duplicate Adress Detection, ICMPv6)
Gestionable:	Web-GUI (HTTP,HTTPS) Command Line Interface CLI ( Console, RFC854) SNMP (v1/v2) File Managment (Firmware Upgrade, Configuration Download DHCP Client DNS Client Mirroring (Port-based (many to one) Syslog (RFC3164, LocalRAM, Local Flash, Remote Server) Time Setting (Local, SNTP) Cable Diagnostics (Cable Test) Port Utiliation Reset Button EEE (802.3az)
Carcasa:	Metal, montaje en sobremesa o rack 19"
Dimensiones:	Ancho/Hondo/Alto: 267 x 162 x 42 mm
Datos ambientales:	Temperatura de funcionamiento: 0 ~ 55 °C Humedad de funcionamiento: 10% ~ 90% Temperatura de almacenamiento: -20 ~ 70 °C Humedad de almacenamiento: 5% ~ 90%
Certificaciones:	EMC/FCC, CE Class B; Safety/LVD EN60950-1

Produktmerkmale:

Anzahl Ports PoE/LAN:	0/24
Belüftung Switch:	Lüfterlos
Einsatzort Switch:	19"
Gestión:	smart managed (WebGui)
LAN Geschwindigkeit:	1Gbit/S

Enlaces externos a "ALLNET ALL-SG8324M Switch 24x 10/100/1000Mbit sin ventilador"

Descargas disponibles:

Vídeo del producto

Dieser Inhalt wird von einer dritten Partei zur verfügung gestellt (www.youtube.com). Beim Anzeigen des externen Inhalts akzeptieren Sie die Nutzungsbedingungen von www.youtube.com Präferenzen speichern * * Ihre Auswahl wird in einem Cookie von shop.allnet.de gespeichert

Downloads

DISCLAIMER_OF_WARRANTY
This Program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; version 2 of the License.
This Program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this Program; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA.
The full text of the GNU General Public License version 2 is included with the software distribution in the file LICENSE.GPLv2

NO WARRANTY
BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Written Offer for Source Code
For binaries that you receive from ALLNET GmbH Computersysteme on physical media or within the download of the offered firmware that are licensed under any version of the GNU General Public License (GPL) or the GNU LGPL, you can receive a complete machine-readable copy of the source code by sending a written request to:
     ALLNET GmbH Computersysteme
     Maistrasse 2
     82110 Germering
Your request should include: (i) the name of the covered binary, (ii) the version number of the Allnet product containing the covered binary, (iii) your name, (iv) your company name (if applicable) and (v) your return mailing and email address (if available).
We may charge you a nominal fee to cover the cost of the media and distribution.
Your request must be sent within three (3) years of the date you received the GPL or LGPL covered code.
For your convenience, some or all of the source code may also be found at:
http://www.allnet.de/gpl.html

Firmware
	Firmware 10.07.2018	ALL-SG8324M Firmware Version 2.2.1
Dokumentation
	Dokumentation 11.02.2015	ALL-SG8324M Benutzerhandbuch (englisch)
	Dokumentation 11.02.2015	ALL-SG8324M Kurzanleitung (englisch)
	Dokumentation 11.02.2015	ALL-SG8324M Kurzanleitung (deutsch)
Sourcecode
	Sourcecode 10.07.2018	ALL-SG8324M Sourcecode Version 2.2.1
