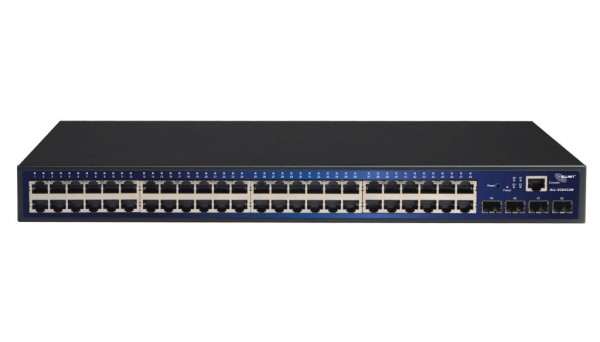

ALLNET ALL-SG8452M Swtich 48x Gigabit + 4x SFP

Vista preliminar: ALLNET ALL-SG8452M Swtich 48x Gigabit + 4x SFP

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

Downloads

declaración de conformidad

Ficha ténica DE

Ficha técnica EN

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 130253
Fabricantes: ALLNET
Número de artículo del fabricante: ALL-SG8452M
Código EAN: 4038816130259
Peso: 4.97kg
Garantía: 24 Meses
¿Preguntas sobre este artículo?

A destacar: 48x 10/100/1000Mbit + 4x SFP Mini-GBIC Slots = Total 52 Ports Soporta el...más

Cerrar menú

Información del producto "ALLNET ALL-SG8452M Swtich 48x Gigabit + 4x SFP"

A destacar:

48x 10/100/1000Mbit + 4x SFP Mini-GBIC Slots = Total 52 Ports
Soporta el protocolo NWay para la velocidad (10/100/1000Mbit) y el modo dúplex (half/full) auto-detection
Capacidad de conmutación hasta 104G
VLAN Port-Based / Tagged Based
Link Aggregation
IGMP Snooping v2/v3 / 256 Multicast-Groups
QoS (Port Based, 802.1p, WRR, DSCP-Based, Basic Mode & Policy Based)
Stormcontrol (Broadcast, Multicast, Unicast)
Totalmente sin ventilador, no más ruidos molestos...
Incluye angúlos para montaje 19"o montaje en pared/mesa

El nuevo switch ALLNET ALL-SG8452M es una base óptima para grupos de trabajo medianos y grandes con un alto volumen de red y datos y permite una rápida transferencia de datos en la red Con un total de 48 puertos Gigabit compatibles hacia abajo + 4 ranuras MiniGBIC, los ordenadores y servidores conectados están interconectados de forma fiable y potente.

Gracias a su diseño sin ventilador, el ALL-SG8452M también es ideal para su uso en un entorno de oficina, ya que no se generan ruidos molestos. El interruptor es gestionable y por lo tanto soporta todos los estándares necesarios como QoS, VLAN, Storm-Control o IGMP Snooping. Esto garantiza el más alto rendimiento y seguridad en su red.

La robusta carcasa metálica es adecuada tanto para el montaje en un armario rack de 19" como para el montaje en la pared.

Características técnicas:

Elementi	Especificación
Modo:	Layer 2-Switch, smart, Store and Foreward, Auto-Negotiation
Tipo:	standalone
Puertos:	48x RJ45 10/100/1000BaseT(X) 4x SFP miniGbics Slots para MiniGBIC p.ej. ALL4750/ALL4751 etc. Total = 52 Gigabit Ports
Puerto de consola:	1x RJ45 Console Port
Uplink:	En todos los puertos (Auto MDI/MDI-X)
Apilable:	Uplink
Modo Full Dúplex:	Sí
Rendimiento de datos:	Velocidad de transimisión
Capacidad:	104Gbps
Gestión de direcciones:	Autoaprendizaje
Tabla de direcciones MAC:	16000
Filtrado/Forwarding:	Velocidad de transimisión
Filtrado/Forwarding:	Power Link Activity
Alimentación:	AC 100V~240V 50/60HZ (12V/4A), fuente de alimentación interna
Consumo:	15 W máximo
Protocolos soportados:	IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE802.ab 1000BaseT IEEE802.3ad Link Aggregation IEEE802.1ab Link Discovery Protocol (LLDP) IEEE802.3x full-duplex operation and flow control IEEE802.1p class of service, priority protocols IEEE802.1Q VLAN Tagged Based
Funciones Nivel 2:	Flow Control (Full-Duplex & Half-Duplex) VLAN (4K VLAN Table, Port-based, IEEE802.1q Tagged-based) Link Aggregation (IEEE802.3ad LACP, Static Trunk, 8x max Gruppen, 8 Ports/Gruppen, Traffic Load Balancing) IGMP Snooping (256 Multicast Gruppen, IGMP v1/v2/v3 IEEE802.1ab Link Layer Discovery Protokoll (LLDP)
QoS:	WRR (Weighted Round Robin) Port based QoS IEEE 802.1p Class of Service DSCP-based QoS QoS basic mode QoS advanced mode (Policy based)
Seguridad:	Broadcast / Uncast / Multicast Storm Control IEEE 802.1x DHCP Snooping(IP?MAC?Port)
Sistema:	IP Configuration(IPV4?IPV6) User Configuration Time Settings(SNTP) Log Management SNMP Management(V2) RMON
Puerto:	Port Configuration Link Aggregation(static?Lacp) Port Mirroring Jumbo Frame Port Error Disabled Configuration
VLAN:	Port based VLAN Protocol based VLAN
IGMP:	IGMP Snooping(V2?V3) Multicast group(256)
ACL:	MAC-Based ACL MAC-Based ACE IPv4-Based ACL IPv4-Based ACE
STP:	IEEE 802.1D STP IEEE 802.1W RSTP IEEE 802.1S MSTP
Control de ancho de banda:	Ingress Port Ingress VLAN Egress Port Egress Queue
Configuración de dirección MAC:	Static Mac Setting MAC Filtering Dynamic Address Learn/Setting Rma Setting
LLDP	LLDP Port Setting MED Network Policy
Gestionable:	System Status Ping Test Factory Reboot Switch Backup/Upgrade Manager Configuration Manager
Carcasa:	Carcasa de metal de 19", ángulos de montaje incluidos
Dimensiones:	Ancho/Hondo/Alto 440 x 330 x 44 mm
Datos ambientales:	Temperatura funcionamiento: 0 ~ 40 °C Humedad funcionamiento: 10% ~ 90% sin condensar Temperatura almacenamiento: -40 ~ 70 °C Humedad almacenamiento: 5% ~ 90%
Certificaciones:	EMC/FCC, CE Class B; Safety/LVD EN60950-1

Produktmerkmale:

Anzahl Ports PoE/LAN:	0/48
Belüftung Switch:	Lüfterlos
Einsatzort Switch:	19"
Gestión:	smart managed (WebGui)
LAN Geschwindigkeit:	1Gbit/S
SFP Geschwindigkeit:	SFP 1 Gbit/s
SFP Port Anzahl:	4
