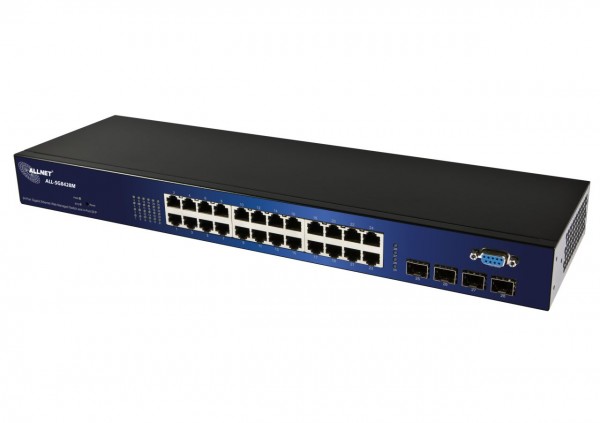

ALLNET ALL-SG8428M Switch 24x Gigabit + 4x SFP

Vista preliminar: ALLNET ALL-SG8428M Switch 24x Gigabit + 4x SFP

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

Downloads

declaración de conformidad

Ficha ténica DE

Ficha técnica EN

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 127211
Fabricantes: ALLNET
Número de artículo del fabricante: ALL-SG8428M
Código EAN: 4038816051622
Peso: 2.9kg
Garantía: 24 Meses
¿Preguntas sobre este artículo?

A destacar: 16x 10/100/1000Mbit + 4x SFP Mini-GBIC Slots Soporta el protocolo NWay...más

Cerrar menú

Información del producto "ALLNET ALL-SG8428M Switch 24x Gigabit + 4x SFP"

A destacar:

16x 10/100/1000Mbit + 4x SFP Mini-GBIC Slots
Soporta el protocolo NWay para la velocidad (10/100/1000Mbit) y el modo dúplex (half/full) auto-detection
Soporta back-pressure (half duplex), flow control (IEEE 802.3x und IEEE 802.3az Energy Efficient Ethernet
VLAN "64 Static / Port-Based / Tagged Based
Link Aggregation ( IEEE802.3ad LACP & Static Trunk)
IGMP Snooping (v1/v2/v3)
QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP)
Stormcontrol (Broadcast, Multicast, Unicast)
Totalmente sin ventilador, no más ruidos molestos...
Incluye angúlos para montaje 19"o montaje en pared/mesa

El nuevo switch ALLNET ALL-SG8428M es una base óptima para grupos de trabajo pequeños y medianos con un alto volumen de red y datos y permite una rápida transferencia de datos en la red Con un total de 24 puertos Gigabit compatibles hacia abajo + 4 ranuras MiniGBIC, los ordenadores y servidores conectados están interconectados de forma fiable y potente.

Gracias a su diseño sin ventilador, el ALL-SG8428M también es ideal para su uso en un entorno de oficina, ya que no se generan ruidos molestos. El interruptor es gestionable y por lo tanto soporta todos los estándares necesarios como QoS, VLAN, Storm-Control o IGMP Snooping. Esto garantiza el más alto rendimiento y seguridad en su red.

La robusta carcasa metálica es adecuada tanto para el montaje en un armario rack de 19" como para el montaje en la pared.

Características técnicas:

Elemento	Especificación
Modo:	Layer 2-Switch, smart, Store and Foreward, Auto-Negotiation
Tipo:	standalone
Puertos:	24x RJ45 10/100/1000BaseT(X) 4x MiniGBIC Slots
Uplink:	Auf allen Ports möglich (Auto MDI/MDI-X)
Apilable:	Uplink
Modo Full Dúplex:	Sí
Rendimiento de datos:	Velocidad de transimisión
Memoria Buffer:	524,8K Bytes
Jumbo Frame:	10K Bytes
Capacidad:	32Gbps
Gestión de direcciones:	Autoaprendizaje
Tabla de direcciones MAC:	8000
Filtrado/Forwarding:	Velocidad de transimisión
Filtrado/Forwarding:	Power Link Activity
Alimentación:	100 - 240V AC, fuente de alimentación interna
Consumo:	15 W máximo
Protocolos soportados:	IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE802.ab 1000BaseT IEEE802.3ad Link Aggregation IEEE802.1ab Link Discovery Protocol (LLDP) IEEE802.3x full-duplex operation and flow control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p class of service, priority protocols IEEE802.1Q VLAN Tagged Based IEEE802.1d Spanning Tree (STP) IEEE802.1w Spanning Tree (RSTP)
Funciones Nivel 2:	Flow Control (Full-Duplex & Half-Duplex) Spanning Tree (IEEE802.1d STP & IEEE802.1w RSTP, Auto Edge Port, Self Loop Detection) VLAN (64 Statis VLAN, Port-based, IEEE802.1q Tagged-based) Voice VLAN (OUI Mode) Link Aggregation (IEEE802.3ad LACP, Static Trunk, 8x max Gruppen, 8 Ports/Gruppen, Traffic Load Balancing) IGMP Snooping (256 Multicast Gruppen, IGMP v1/v2/v3 IEEE802.1ab Link Layer Discovery Protokoll (LLDP)
QoS:	8 Priority Queue Rate Limit (Port Based Ingress/Egress) Queue Scheduling (WRR, WFQ, Strict Priority, Hybrid) Class of Service (Port-based, Flow-based, 802.1p, IP Tos, IP DSCP)
Seguridad:	Storm Control (Broadcast, Unknown Multicast, Unknown Unicast) HTTPS und SSL 2.0 Account Manager (Multiple Account, Multi-Level Security) Management VLAN, Port-Isolation DoS Prevention
IPv6:	IPv6 Application (HTTP/HTTPS, TELNET, SNMP, TFTP, PING, PHCPv6) IPv6 Host (Static Adress Length, Default Gateway, Neighbor Discovery (ND), Duplicate Adress Detection, ICMPv6)
Gestionable:	Web-GUI (HTTP,HTTPS) Command Line Interface CLI ( Console, RFC854) SNMP (v1/v2) File Managment (Firmware Upgrade, Configuration Download DHCP Client DNS Client Mirroring (Port-based (many to one) Syslog (RFC3164, LocalRAM, Local Flash, Remote Server) Time Setting (Local, SNTP) Cable Diagnostics (Cable Test) Port Utiliation Reset Button EEE (802.3az)
Carcasa:	Carcasa de metal de 19", ángulos de montaje incluidos
Dimensiones:	Ancho/Hondo/Alto: 216 x 133 x 42mm
Datos ambientales:	Temperatura funcionamiento: 0 ~ 55 °C Humedad funcionamiento: 10% ~ 90% Temperatura almacenamiento: -20 ~ 90 °C Humedad almacenamiento: 5% ~ 90%
Certificaciones:	EMC/FCC, CE Class B; Safety/LVD EN60950-1

Produktmerkmale:

Anzahl Ports PoE/LAN:	0/24
Belüftung Switch:	Lüfterlos
Einsatzort Switch:	19"
Gestión:	smart managed (WebGui)
LAN Geschwindigkeit:	1Gbit/S
SFP Geschwindigkeit:	SFP 1GBit
SFP Port Anzahl:	4
