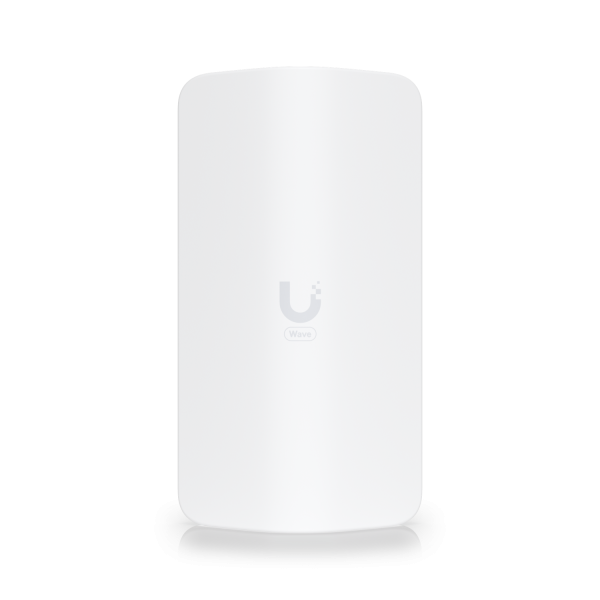

Ubiquiti Wave PtMP access point • 60 GHz • 5 Gbps • 1x 2,5 GbE • Wave-AP-Micro

Vista preliminar: Ubiquiti Wave PtMP access point • 60 GHz • 5 Gbps • 1x 2,5 GbE • Wave-AP-Micro

Imágenes de artículos similares, pueden diferir de la descripción del producto!

Los precios no incluyen IVA ni gastos de transporte

Artículo no disponible en la cantidad deseada, tiempo de entrega bajo pedido

Llámenos Escríbanos

EU RoHS und REACH Erklärung

Stock: 0
Nº de artículo 231987
Fabricantes: Ubiquiti
Número de artículo del fabricante: Wave-AP-Micro
Código EAN: 810010079428
Peso: 1.3kg
Garantía: 12 Meses
¿Preguntas sobre este artículo?

Large-scale 60 GHz PtMP access point with wave technology. Highlights: Max. Total...más

Cerrar menú

Información del producto "Ubiquiti Wave PtMP access point • 60 GHz • 5 Gbps • 1x 2,5 GbE • Wave-AP-Micro"

Large-scale 60 GHz PtMP access point with wave technology.

Highlights:

Max. Total throughput: 5 Gbit/s
90° sector coverage
Weatherproof 5 GHz backup radio (max. throughput: 800 Mbit/s)
(1) 2.5 GbE WAN connection
31* client capacity:
- Wave Pro (6 km connection range)
- Wave Long-Range (6 km connection range)
- Wave Nano (4 km connection range)
- Wave Pico (0.9 km connection range)
Integrated GPS and Bluetooth

_{*FW version 3.4.0 and higher}

_{Technical data:}

Mechanical
Dimensions	284 x 156 x 76 mm (11.2 x 6.1 x 3 inches)
Weight	1.3 kg
Housing material	Aluminium alloy, UV-stabilised polycarbonate
Mounting material	Stainless steel, UV-stabilised polycarbonate
Diameter of the pole mount	35 to 60 mm (1.4 to 2.4") on the tube diameter
Wind load	87 N at 200 km/h (20 lbf at 125 mph)
Weather resistance	IPX6
Hardware
Processor	Quad-core ARM® Cortex®-A53 with 1.4 GHz
Memory	DDR3L 512 MB
Network interface	(1) 1/2.5 GbE RJ45 port
Max. Power consumption	24W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), only for 4454 V DC
Power supply	48 V DC, 0.65 A, 2.5 GbE PoE adapter (included)
Supported voltage range	4454 V direct current 2227 V direct current
GPS	Yes
Button	Factory reset
LEDs	Power supply, Ethernet, GPS, connection
Operating ambient temperature	-40 to 60 °C (-40 to 140 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	FCC, IC, CE
Software
Operating mode	PtMP access point
Ubiquiti-specific functions	Wave AI, detection protocol
Services	UISP, Ping watchdog, NTP client, SNMP
Tools	Antenna alignment, detection programme, ping, traceroute, speed test, cable test, site survey *FW version 3.3.0 and higher
Network	Bridge mode
Application requirements	UISP Web: Version 2.2.11 and higher UISP Mobile iOS: Version 2.25.1 and higher UISP Mobile Android: Version 2.27.5 and higher
System
Total throughput	5 Gbit/s
Number of supported clients	31* *FW version 3.4.0 and higher
Max. Range	Connection to a Wave Pro: up to 6 km Connection to a Wave Long-Range: up to 6 km Connection to a Wave Nano: up to 4 km Connection to a Wave Pico: up to 0.9 km
Encryption	WPA2-PSK (AES)
RF
Operating frequency*	5771 GHz *Depending on the regulatory region
Channel bandwidth	2160, 1080, 540* MHz *FW version 3.3.0 and higher
Control channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depending on the regulatory region.
Modulation	16QAM, QPSK
Antenna gain	20 dBi
Polarisation	Vertical linear
Beam width	Azimuth: 3 dB 90° Elevation: 3 dB 7°
Electrical lowering	0°
Backup-RF
WiFi standard	802.11ax (WLAN 6)
Operating frequency* US/CA Worldwide	U-NII-1 51505250 MHz U-NII-2A 52505350 MHz U-NII-2C 54705725 MHz U-NII-3 57255850 MHz 51505875 MHz *Depending on the regulatory region
Channel bandwidth	20, 40, 80 MHz
Modulation	BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna gain	13.5 dBi
Polarisation	Dual-linear
Beam width	Azimuth: 6 dB 90° Elevation: 6 dB 25°
Cross-pole insulation	10 dB
Electrical attenuation	0°
LEDs
Power	White flashing: Boot process is running White: not connected to UISP application Blue: connected to UISP application Flashing blue: localisation in progress Blue/white: Firmware upgrade in progress
Ethernet	Blinking blue: Ethernet traffic detected
GPS	Blue: reception of at least (4) GPS satellite signals
Link	Blue: 60 GHz connection White: 5 GHz link
